Product Overview

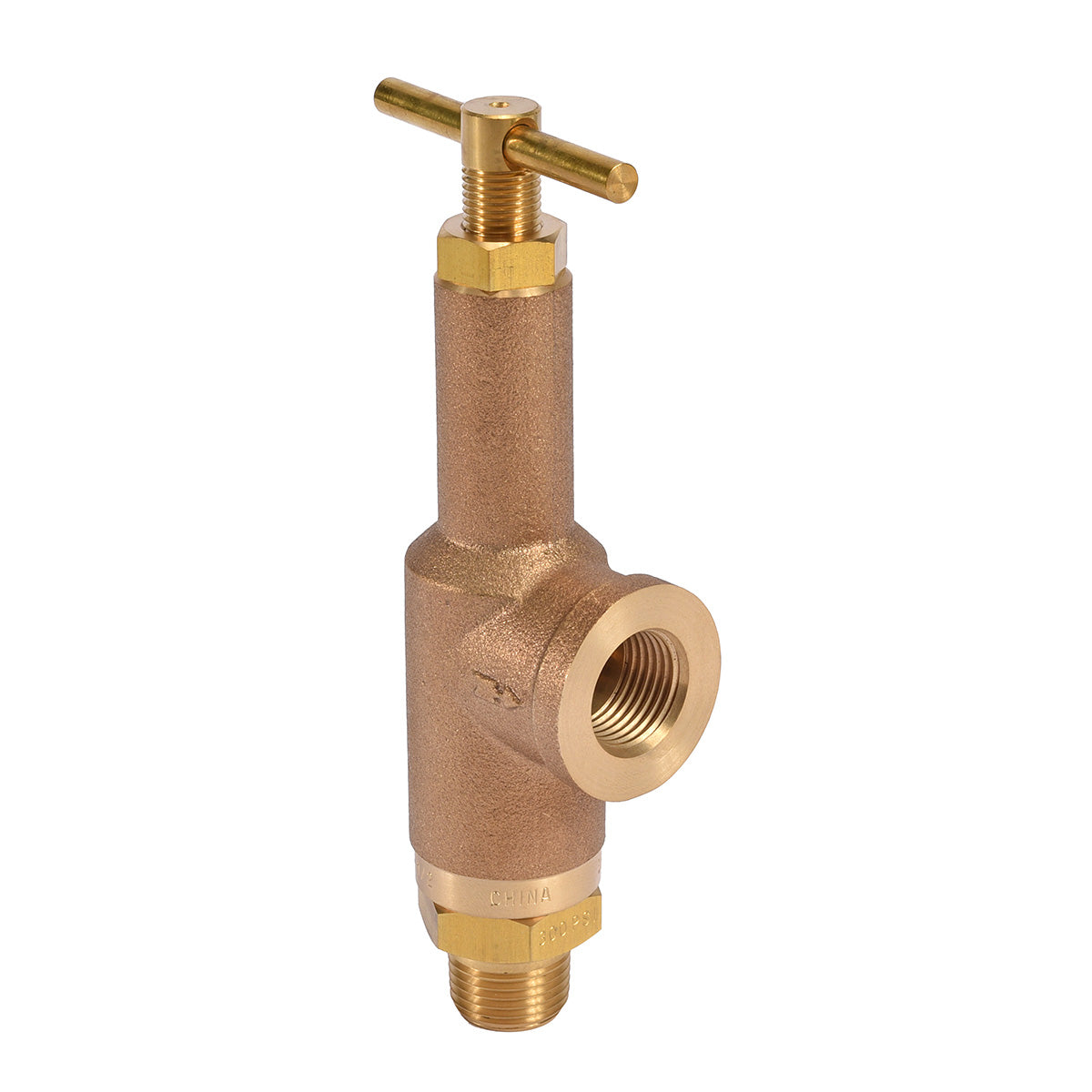

6815-1/2-50 Piston-Type Pressure Relief/Regulating Valve.

Brass, 1/2" Inlet & Pipe Connection, 50 psi max.

Bypasses excess liquid. Adjustable to maintain control of line pressure at any pressure within the valve's operating range. Selected pressure setting firmly held in place by locknut. Extra large valve passages to handle large flows.

Also available in 3/4" and in 50 and 300 psi.

Parts breakdown

Diagram

Diagram parts

Parts list

  • Adjusting Screw Assembly
    • Ref No: 1
    • Part No: CP5896
    • Qty Req: 1
    Our price: $5.39 List price: $8.98
  • Locknut
    • Ref No: 2
    • Part No: CP5898
    • Qty Req: 1
    Our price: $1.67 List price: $2.78
  • Body
    • Ref No: 3
    • Part No: CP681812
    • Qty Req: 1
    Our price: $45.47 List price: $75.79
  • Spring Retainer
    • Ref No: 4
    • Part No: CP6545
    • Qty Req: 1
    Our price: $1.67 List price: $2.78
  • Gasket, Buna-N
    • Ref No: 5
    • Part No: CP5899BU
    • Qty Req: 1
    Our price: $1.38 List price: $2.30
  • Inside Spring
    • Ref No: 6
    • Part No: CP6547SS
    • Qty Req: 1
    Our price: $2.89 List price: $4.81
  • Outside Spring
    • Ref No: 7
    • Part No: CP6546SS
    • Qty Req: 1
    Our price: $3.31 List price: $5.52
  • Guide Seat
    • Ref No: 8
    • Part No: CP6544
    • Qty Req: 1
    Our price: $6.84 List price: $11.40
  • 1/2" Inlet Adapter
    • Ref No: 9
    • Part No: CP6789
    • Qty Req: 1
    Our price: $9.06 List price: $15.10
