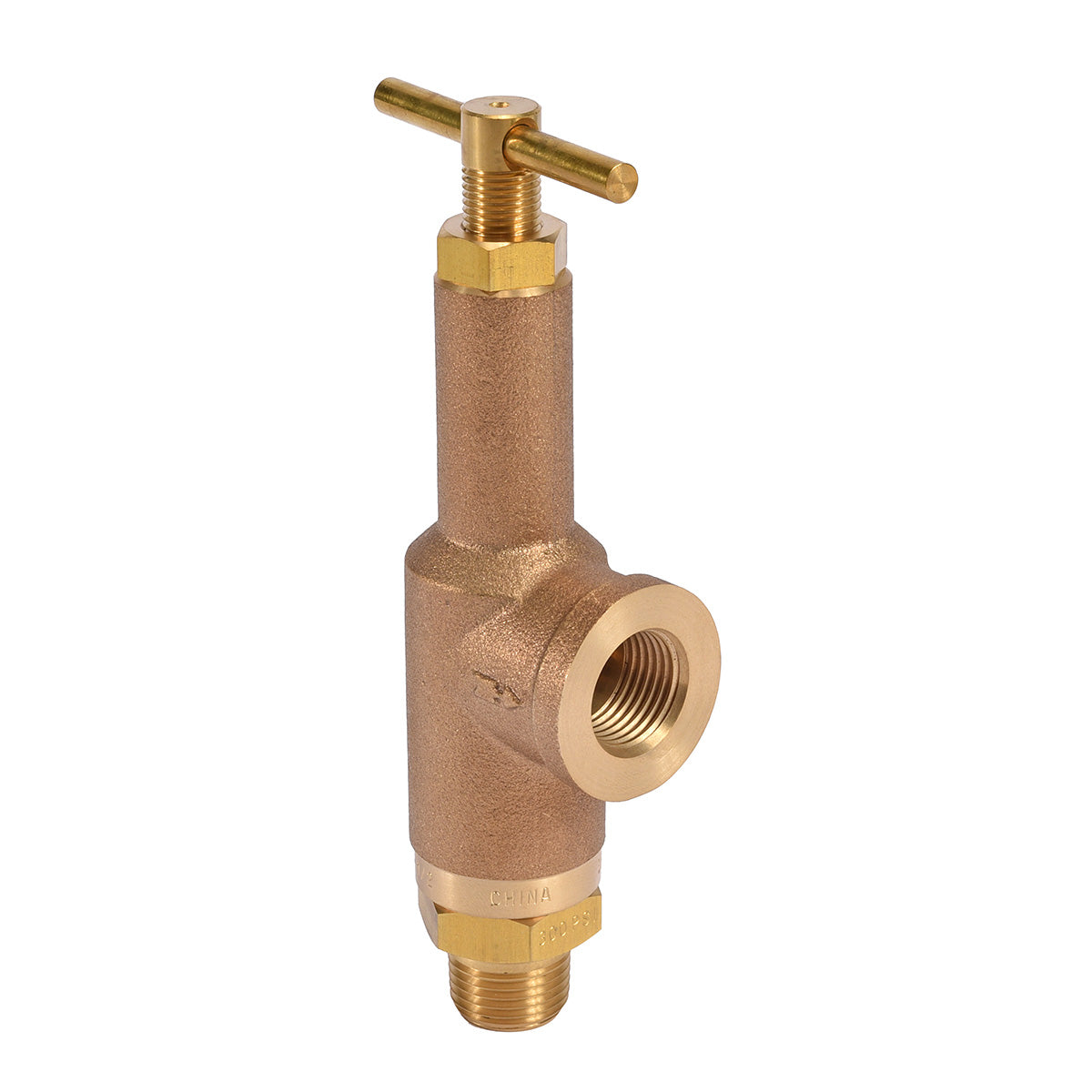

1/2" 1200 PSI Brass Relief Valve

Item Code:
681512HSS1200
Weight:
3.0 lb
Manufacturer:
Spraying Systems Company/Teejet
Our price:
$127.80
List price:
$182.57
Overview:

6815-1/2-HSS-1200 Piston-Type Pressure Relief/Regulating Valve.

Brass, 1/2" Inlet & Pipe Connection, 1200 psi max. Hardened Stainless Steel Seat.

Bypasses excess liquid. Adjustable to maintain control of line pressure at any pressure within the valve's operating range. Selected pressure setting firmly held in place by locknut. Extra large valve passages to handle large flows.

Also available in 3/4" and in 50 and 300 psi.

Download Product Manual

Parts breakdown

Parts list

Locknut

  • Ref No: 2
  • Part No: CP5898
  • Qty Req: 1
Our price: $1.66 List price: $2.21

Body

  • Ref No: 3
  • Part No: CP681812
  • Qty Req: 1
Our price: $45.56 List price: $60.74

Gasket, Buna-N

  • Ref No: 5
  • Part No: CP5899BU
  • Qty Req: 1
Our price: $1.37 List price: $1.83

Guide Seat (1200 PSI)

  • Ref No: 8
  • Part No: CP14308CHSS
  • Qty Req: 1
Our price: $21.65 List price: $28.86
