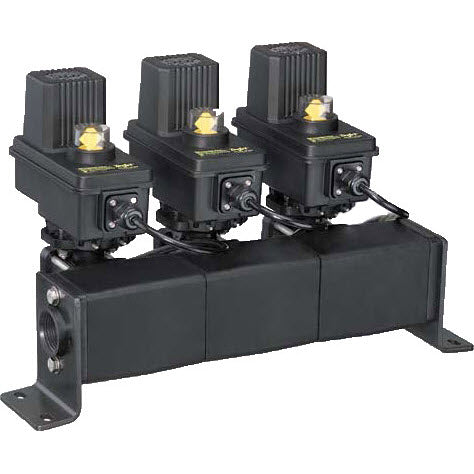

1" 12V 440 Series 3-Valve Manifold

Item Code:
443BEC44T4TC
Weight:
15.0 lb
Manufacturer:
Spraying Systems Company/Teejet
Our price:
$773.68
List price:
$1,289.47
Overview:

The 12V 440 Series three valve manifold is the simple answer for easy utility and functionality for installation of up to five electric ball valves. The variety of input and output options eliminates the need for custom pipe or hose manifold fabrication. A built in bracket system for mounting and an internal resettable fuse add to this three valve manifoldÕs ease of use.

Manufacturer Description:

The TeeJet¨ 440BEC series DirectoValve manifold provides a convenient, compact solution for the installation of multiple 344BEC electric ball valves. This system eliminates the need for custom fabrication of pipe or hose manifolds, drastically reducing both installation time and the chance for fluid leaks. 440BEC shutoff ball valves are available with E or EC series motors with cable or DIN electrical connections.

Features:

  • Max pressure: 300 psi (20 bar)
  • Flow rate of 26 GPM (98 l/min) with 5 psi (0.34 bar) pressure drop
  • Port size: 1" FNPT
  • 22 RPM, 0.7 second shutoff fully open to close
  • 3-Valve manifold
  • Easy mounting with built-in brackets
  • Incorporates an internal resettable fuse.
  • 12 VDC (power source required)
  • Stainless steel stem with polypropylene ball (stainless steel available)
  • Weight: 15 lbs

Parts breakdown
