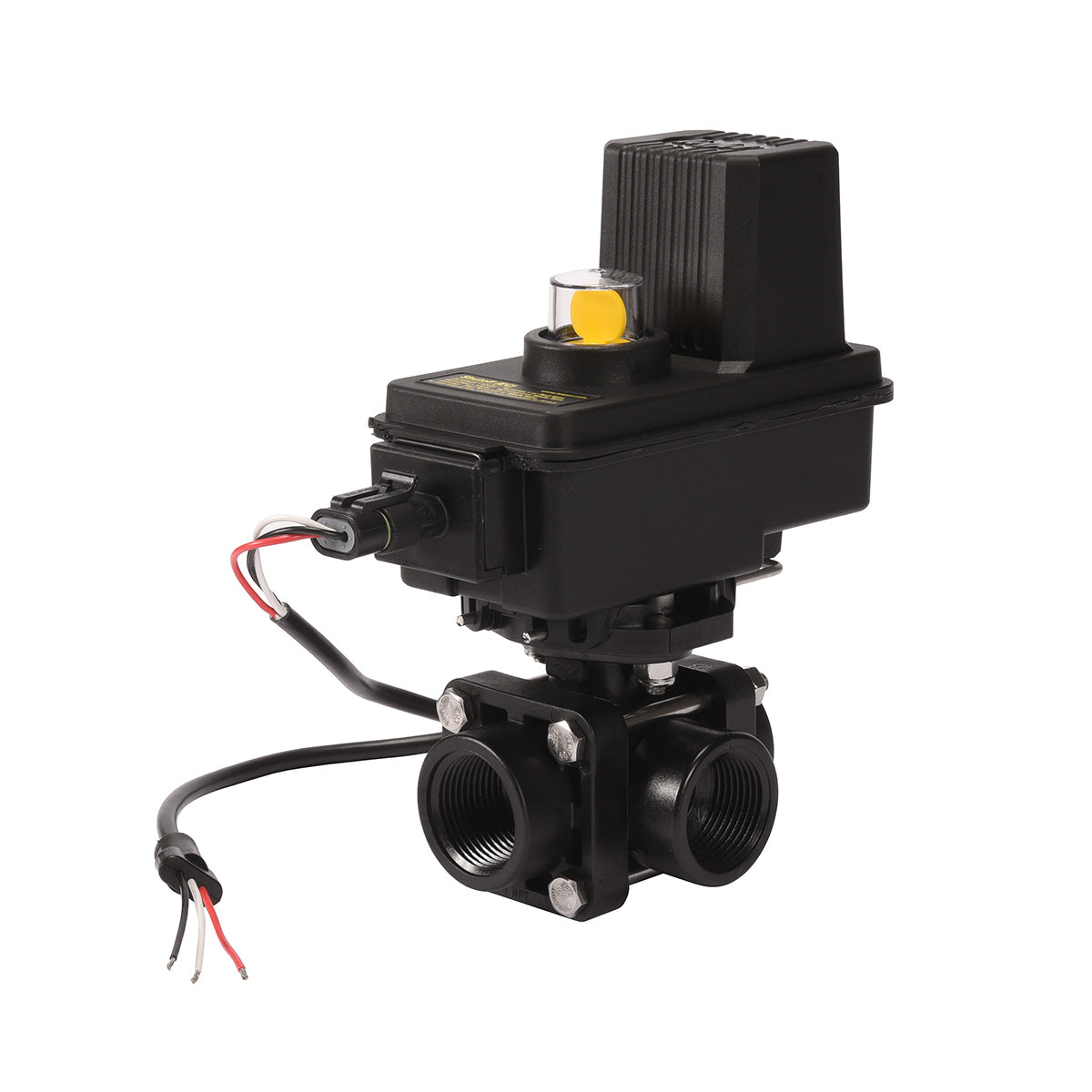

1" 12V 3 Way Electric Shutoff Valve

Item Code:
344BEC34C
Weight:
5.0 lb
Manufacturer:
Spraying Systems Company/Teejet
Our price:
$263.47
List price:
$439.11
Overview:

1" NPT Outlet Threads, 12 VDC 3-Way Valve, Polypropylene Ball, Positively Switched w/ 0.5-Meter Cable.

DirectoValve 344 Series Electric Shutoff Valve from Spraying Systems/TeeJet.

344B shutoff ball valves are available with E or EC Series motors and with cable or DIN electrical connections.

Features:

-22RPM, 0.7 second shutoff fully open to close.

-Flexible inlet/outlets provide quick simple plumbing for a single valve.

-Available in 2-way or 3-way versions. 2-way valves allow complete shutoff while the 3-way valves divert flow to a bypass line when boom controls are shut off.

-Stainless steel stem with optional polypropylene or stainless steel ball.

-Maximum pressure rating is 300 psi (20 bar).

-The flow rate for the 344BEC 2-way valve is 32 GPM (121 l/min) flow rate with a 5 psi (0.34 bar) pressure drop.

-The flow rate for the 344BEC 3-way valve is 24 GPM (91 l/min) with a 5 psi (0.34 bar) pressure drop.

-W
