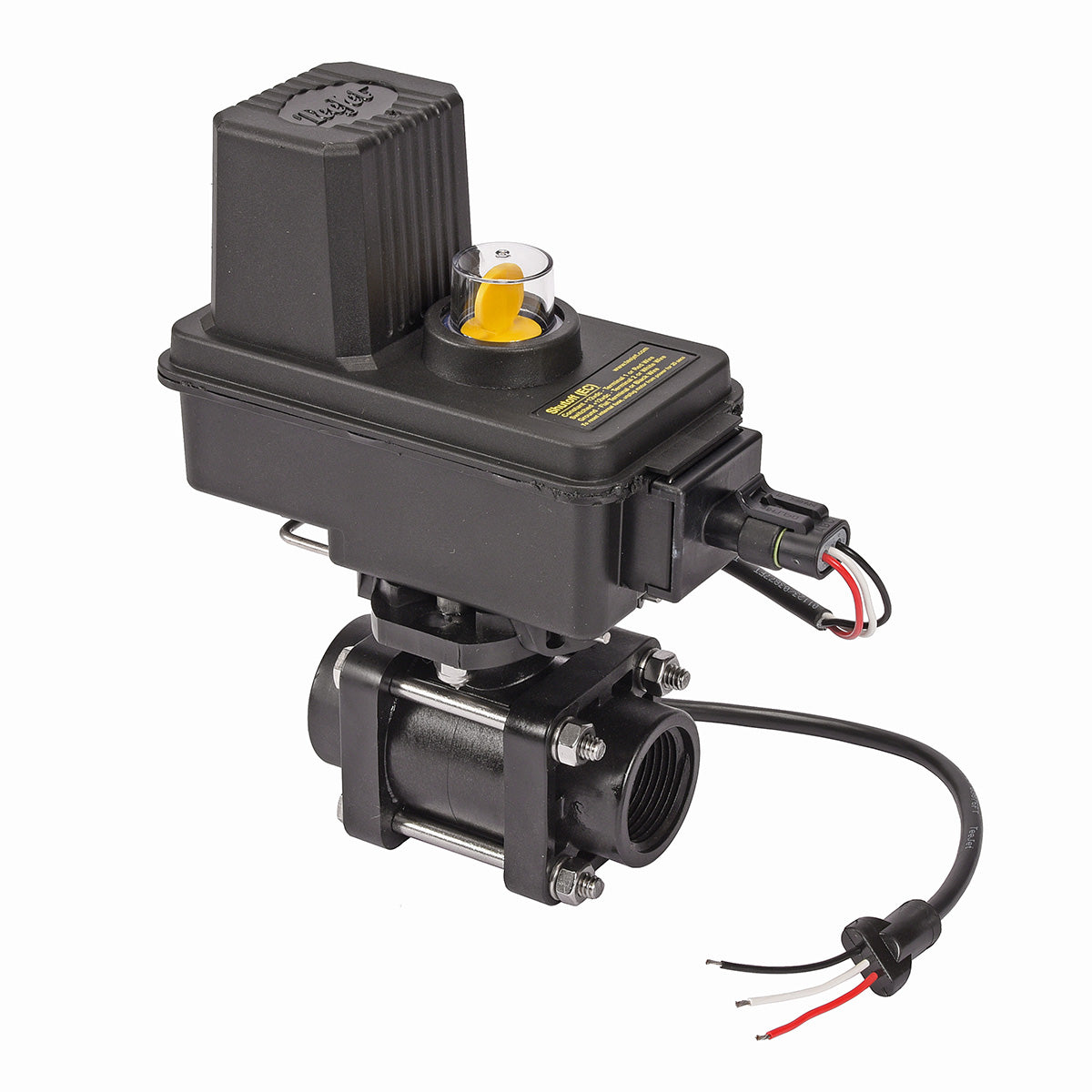

1" 12V 2 Way Electric Shutoff Valve

Item Code:
344BEC24C
Weight:
5.0 lb
Manufacturer:
Spraying Systems Company/Teejet
Our price:
$215.29
List price:
$358.81
Overview:

This 1" 12V 2 Way Electric Shutoff Valve from Spraying Systems Company is tooled for durability, with a stainless-steel stem and a maximum pressure rating of 300 PSI. It's also built to withstand corrosion and damage from repeated exposure to liquids in your sprayer system. It's also available as a two-way or three-way valve to give you plenty of versatility according to your systems' needs.

Manufacturer Description:

Features: -22 RPM, 0.7 second shutoff fully open to close. -Flexible inlet/outlets provide quick simple plumbing for a single valve. -Available in 2-way or 3-way versions. 2-way valves allow complete shutoff while the 3-way valves divert flow to a bypass line when boom controls are shut off. -Stainless steel stem with optional polypropylene or stainless steel ball. -Maximum pressure rating is 300 psi (20 bar). -The flow rate for the 344BEC 2-way valve is 32 GPM (121 l/min) flow rate with a 5 psi (0.34 bar) pressure drop. -Wetted parts are nylon, Teflon®, polypropylene, stainless steel and Viton.

Features:

  • Max pressure: 300 psi
  • Max flow: 45 gpm
  • Port sizes: 1" FNPT
  • 12 VDC motor (power source required)
  • 22 rpm, 0.7 second shutoff valve
  • Positively switched with 0.5-meter cable
  • Weight: 5 lbs

Parts breakdown
