Hypro 7560C-GM30 Roller Pump

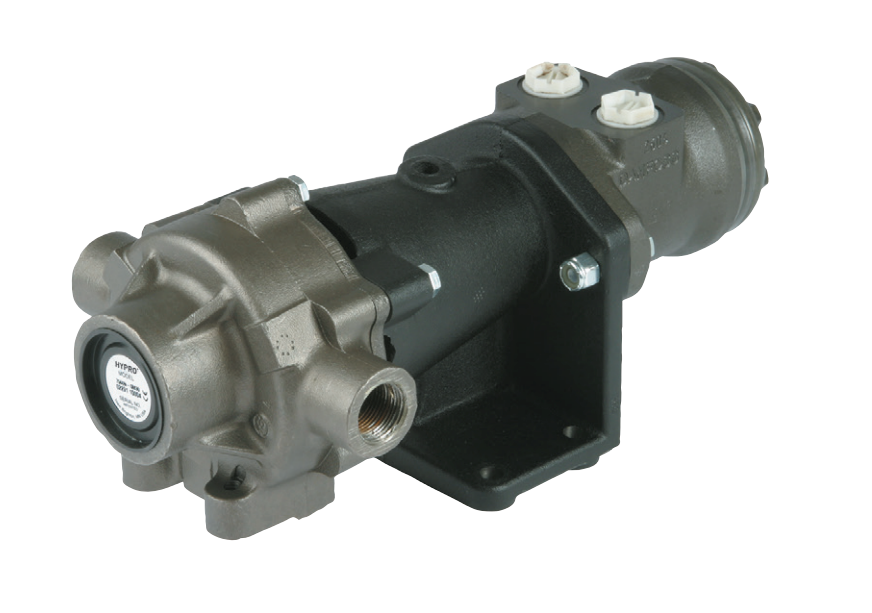

**The image displays a 7560XL pump. This model is equipped with a 7560, cast-iron pump**

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps. Construction features include a Cast Iron, Ni-Resist or Silver CastTM body, Super Rotor, 416 stainless steel shaft, sealed factory-lubricated ball bearings, cartridge-type lip seals of Viton or Buna-N, and versatile Super Rollers.(Super Rollers feature the life of polypropylene and the chemical resistance of nylon.) The hydraulically-driven roller pump can be conveniently mounted anywhere and hooked up to system hydraulics, eliminating the need for a PTO or a gas engine to drive the pump.

• Hydraulic motor drive (for open center, closed center and load-sensing systems)
• Max flow: 20.8 gpm
• Max pressure: 300 psi
• Max RPM: 1000
• Max hydraulic: 12 gpm
• Max. fluid temperature: 140°F/60°C
• Pump port size: 3/4" NPT
• 1" hose barb inlet fitting for 1000 rpm operation
• Housing: Cast Iron
• Rollers: Super Rollers standard [Poly (T3) and Teflon® (T2)]
• Shaft Seals: Viton® standard
• Rotor: Cast Iron
• Motor port size: -10 SAE (7/8"- 14" UNF)
