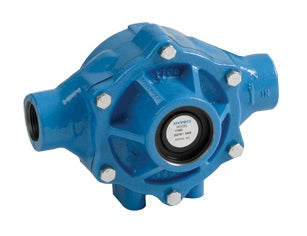

Hypro Roller Pump
Model: 1700C-R

(Image may not match exactly)

With a maximum flow rate of 45 GPM and an upper pressure limit of 200 PSI, this Hypro 1700CR roller pump is a logical choice for low-pressure sprayer applications of insecticide, herbicide, liquid fertilizer, or aromatic solvents. This pump features a rotary-action roller principle, eliminating the need for check valves during operation. It also provides reduced friction and lower starting torque compared to other pumps.

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids, including insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers, and many other liquids. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps.

Download Product Manual

• Max flow: 45 GPM
• Max pressure: 200 PSI
• Max rpm: 1000
• Port sizes: 1" FNPT
• Pump shaft rotation: CW
• Housing: Cast iron
• Rotor: Cast iron
• Roller material: Super rollers standard, poly and Teflon®
• Roller quantity: 5
• Shaft seals: Viton® standard, Buna available
• Shaft: 11/16" solid stainless steel
• Max fluid temperature: 140° F
