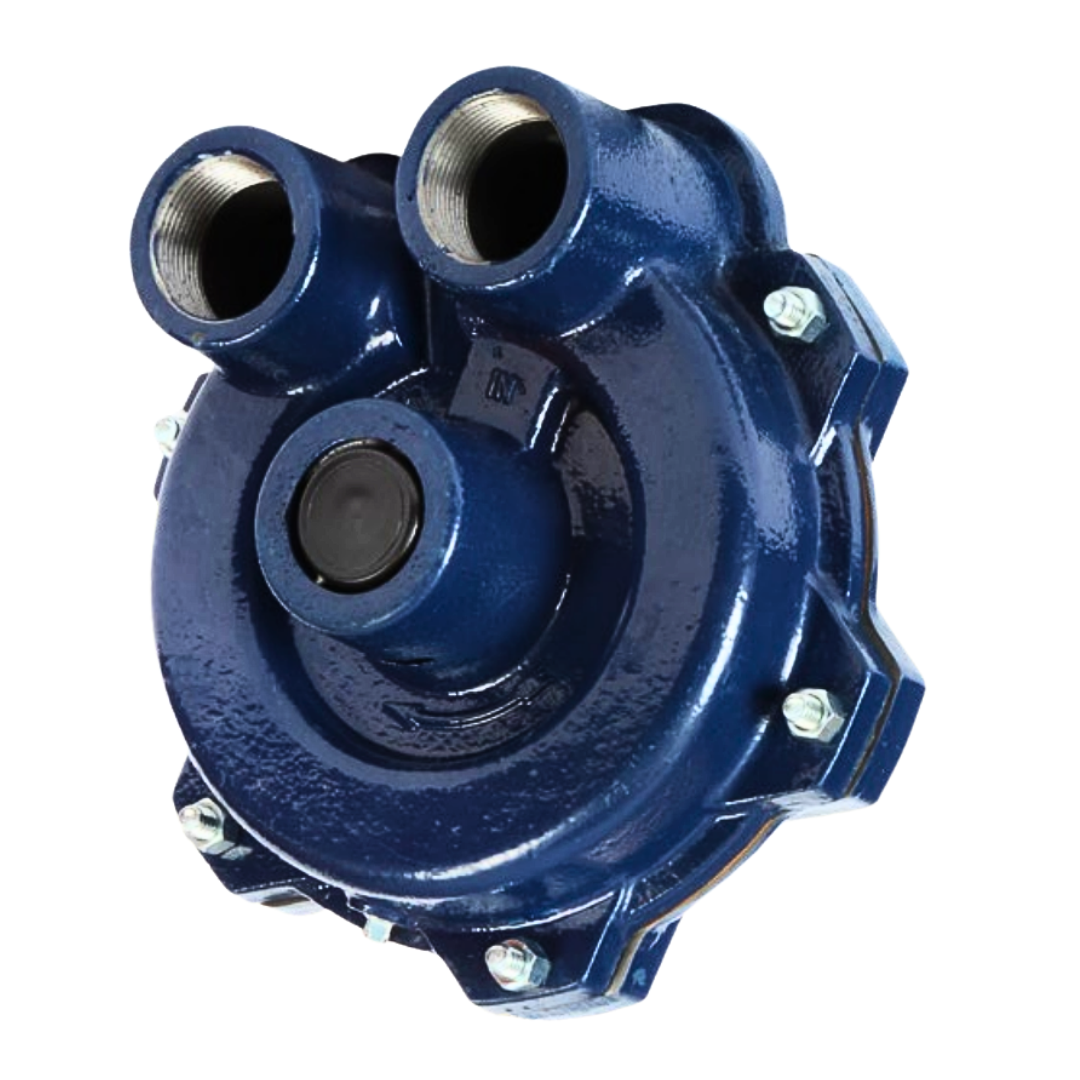

Delavan Turbo 90 Turbine Pump

(Image shown may not match exactly)

Model:  26556-11 - Cast Iron with Severe Duty Lip Seal

Delavan Turbo90 PTO pumps are durable transfer pumps built specifically for your various applications. Turbo90 features are designed to power all your farm and field accessories with ease.

Delavan designs, engineers and manufactures a wide variety of tubine and centrifugal pumps.  The Turbo 90 series is available with standard or severe duty seal.  Please contact our customer service technicians if you need help selecting the correct pump for your system.

• Type: Turbine; cannot run dry
• Housing: Cast iron
• Impeller: Nylon
• Seals: Severe duty face seals (Viton)
• Max flow: 90 GPM
• Max pressure: 100 PSI
• Inlet/Outlet: 1-½" FNPT
• Shaft output: 15/16" diameter solid shaft with ¼" keyway
• Max RPM: 1200
• Shaft rotation: CCW for PTO
