Delavan PowerFLO Electric Diaphragm Pump

(Image shown is 7802-201)

Model:  7802-111 - 12 VDC Bypass

Delavan designs, engineers and manufactures a wide variety of electric pumps for many different applications.  The 7802 series are 12 VDC and available in both Automatic Demand and Bypass versions.  Pumps are manufactured with Viton valves and Santoprene diaphragm for increased corrosion resistance.

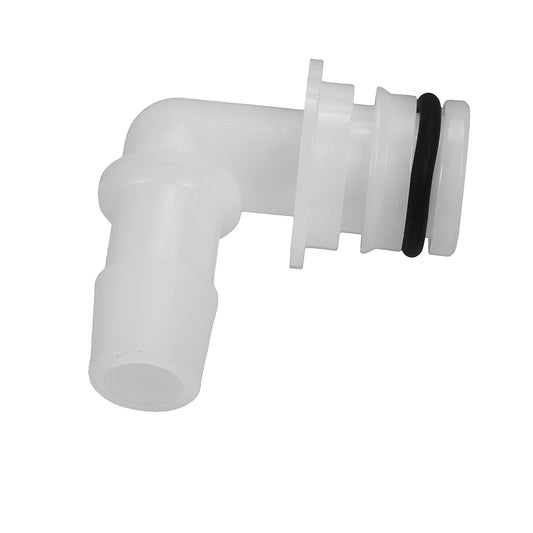

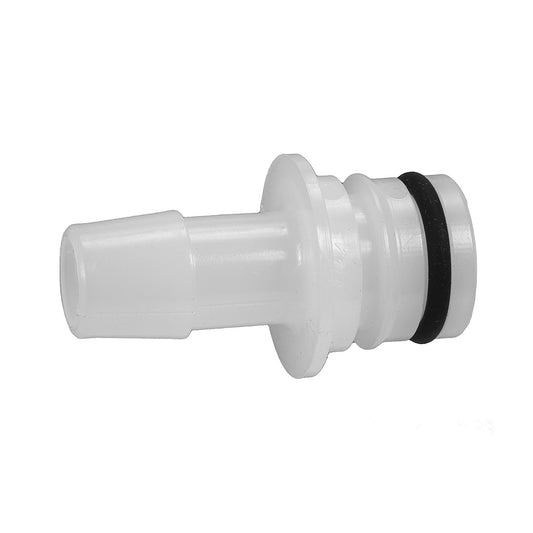

**The fittings for the pump inlet and outlet are sold separately. For fitting options, search “ quick attach fittings” in the search bar.**

Download Product Manual

• Max flow: 2 GPM
• Max pressure: 60 PSI
• Inlet/Outlet: 5/8" quick attach
• Maximum temperature: 140° F
• Max suction lift: 14'
• Motor: 12 VDC permanent magnet, thermally protect, splash proof
