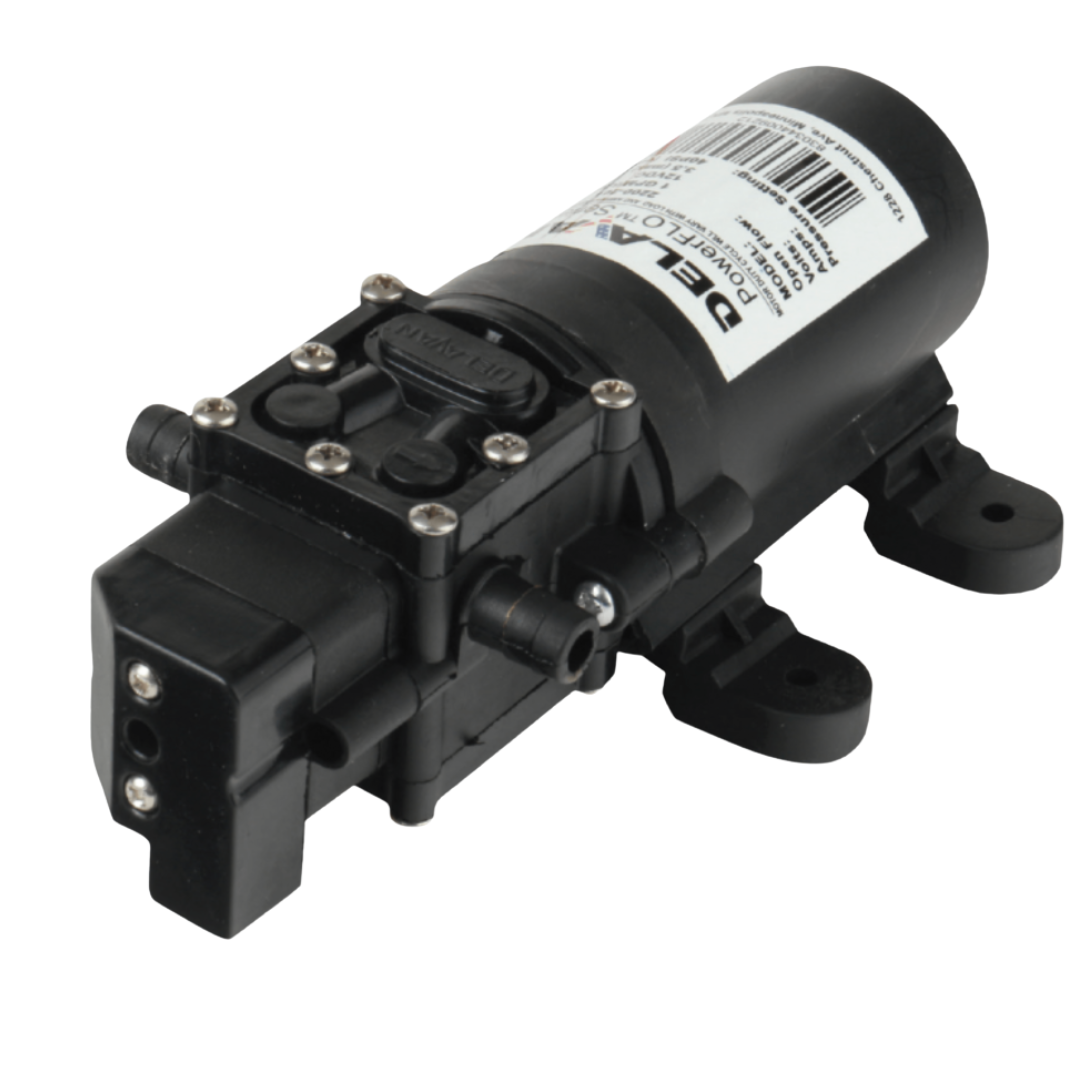

Delavan PowerFLO Electric Diaphragm Pump

Model:  2200-301

Delavan designs, engineers and manufactures a wide variety of electric pumps for many different applications.  The 2200 series are 12 VDC Automatic Demand pumps with a built in pressure switch.  Pumps are manufactured with Viton valves and Santoprene diaphragm for increased corrosion resistance.  The 2200-301 includes an On/Off switch on the pump.

**The fittings for the pump inlet and outlet are sold separately. If you are unsure of what you need please contact a customer service representative for assistance.**

• Max flow: 1 GPM
• Max pressure: 40 PSI
• Inlet/Outlet: 3/8" hose barb
• Maximum temperature: 110° F
• Max suction lift: 4'
• Motor: 12 VDC permanent magnet, thermally protected, splash proof. Integral on/off swtitch. Wire leads with 2-pin connector
