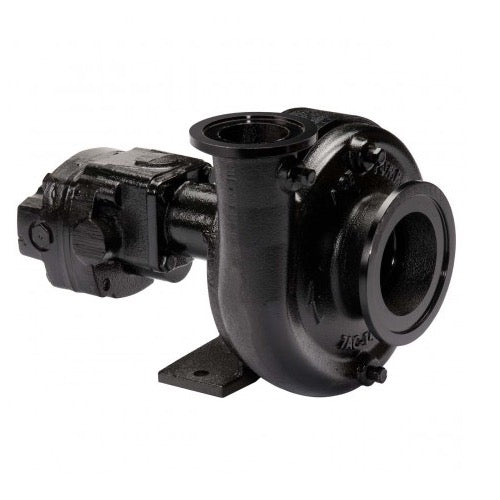

Name: Ace FMCSC-205F-HYD-304 Hydraulic Driven Centrifugal Pump
Brand: Ace Pumps
SKU: FMCSC205FHYD304
Price: 1366.2 USD
Availability: InStock

Ace FMCSC-205F-HYD-304 Hydraulic Driven Centrifugal Pump

Brand:

Ace Pumps

Weight:

40.0 lb

Item #

FMCSC205FHYD304

1 1

Ace FMCSC-205F-HYD-304 Hydraulic Driven Centrifugal Pump

Brand:

Ace Pumps

Weight:

40.0 lb

Item #

FMCSC205FHYD304

$1,366.20

$1,366.20 List Price: ~~$2,277.00~~

Product variants

Earn 4,099 points with this purchase.

See Details

View full details

Product Overview

Ace FMCSC-205F-HYD-304 Hydraulic Driven Centrifugal Pump

Manufacturer description

Stainless Steel
Severe Duty Silicon Carbide Mechanical Seal with O-ring Seat for Improved Survivability
Larger 203 Bearings for Longer Life
Chemical Resistant Valox Impeller

Resources

Download Product Manual

Features

Port sizes: Inlet 300 Flange, Outlet 220 Flange
Max Pressure: 120 PSI
Max Flow: 240 GPM
Weight: 40 lbs

Parts breakdown

Diagram

Parts list

Pipe Plug, 1/8" NPT
- Ref No: 1
- Part No: BAC53
- Qty Req: 4
Our price: $0.70 List price: $1.00
Pipe plug, 1/8" NPT stainless steel (-FS model)
- Ref No: 1
- Part No: 41120
- Qty Req: 4
Our price: $4.55 List price: $6.50
Volute, 300 standard flange x 220 full port flange, cast iron
- Ref No: 2
- Part No: 7AC14FLG
- Qty Req: 1
Our price: $396.90 List price: $567.00
Volute, 300 flange x 220 flange, 316 stainless steel (-FS model)
- Ref No: 2
- Part No: 7AC14FLGSS
- Qty Req: 1
Our price: $701.40 List price: $1,169.00
Nut, 3/8” NF, stainless steel
- Ref No: 3
- Part No: BAC23BSS
- Qty Req: 1
Our price: $1.23 List price: $1.75
Washer, 3/8”, stainless steel, self-locking
- Ref No: 4
- Part No: BAC24BSS
- Qty Req: 1
Our price: $6.13 List price: $8.75
Impeller, thermoplastic
- Ref No: 5
- Part No: BAC26200P
- Qty Req: 1
Our price: $119.70 List price: $171.00
Impeller, cast iron (optional)
- Ref No: 5
- Part No: BAC26200CI
- Qty Req: 1
Our price: $252.00 List price: $360.00
Impeller, 316 stainless steel (-FS model) (optional)
- Ref No: 5
- Part No: BAC26200SS
- Qty Req: 1
Our price: $356.30 List price: $509.00
O-ring, body seal
- Ref No: 6
- Part No: BAC4A
- Qty Req: 1
Our price: $6.83 List price: $9.75
Seal, silicon carbide
- Ref No: 7
- Part No: BAC7SC205V
- Qty Req: 1
Our price: $154.00 List price: $220.00
Mounting frame for 205 pump
- Ref No: 8
- Part No: BAC14205HYD
- Qty Req: 1
Our price: $339.50 List price: $485.00
Mounting frame for 205 pump, 316 stainless steel (-FS model)
- Ref No: 8
- Part No: BAC14205HYDSS
- Qty Req: 1
Our price: $741.00 List price: $1,235.00
Cap screw, 3/8” NC x 3/4” hex head
- Ref No: 9
- Part No: 40950
- Qty Req: 4
Our price: $0.88 List price: $1.25
Cap screw, 3/8” NC x 3/4” hex head, stainless steel
- Ref No: 9
- Part No: 40930
- Qty Req: 4
Our price: $2.28 List price: $3.25
Cap screw, 5/16” NC x 3/4” hex head, motor to pump
- Ref No: 10
- Part No: 41330
- Qty Req: 4
Our price: $0.75 List price: $1.25
Slinger
- Ref No: 11
- Part No: BAC54
- Qty Req: 1
Our price: $2.10 List price: $3.00
Snap ring, internal, BAC-14-205 mounting frame
- Ref No: 12
- Part No: BACH33
- Qty Req: 2
Our price: $1.58 List price: $2.25
Snap ring, internal, BAC-14-205 mounting frame
- Ref No: 13
- Part No: BACH32HD
- Qty Req: 3
Our price: $2.98 List price: $4.25
Ball bearing, sealed, BAC-6-205 shaft
- Ref No: 14
- Part No: 40880
- Qty Req: 2
Our price: $22.05 List price: $31.50
Shaft, extended keyway, tang, stainless steel
- Ref No: 15
- Part No: BAC6205HYDSS
- Qty Req: 1
Our price: $179.20 List price: $256.00
Key, 1/8” x 1/8” x 13/16”, extended keyway
- Ref No: 16
- Part No: BAC25
- Qty Req: 1
Our price: $1.23 List price: $1.75
Seal support spacer for 205 series pump
- Ref No: 17
- Part No: S305
- Qty Req: 1
Our price: $15.05 List price: $21.50
Hydraulic Motor
- Ref No: 18
- Part No: BAC75HYD304N
- Qty Req: 1
Our price: $714.00 List price: $1,190.00
O-ring, #8 SAE fitting
- Ref No: 19
- Part No: 41875ACE
- Qty Req: 1
Our price: $1.23 List price: $1.75
O-ring, #10 SAE fitting
- Ref No: 20
- Part No: 41445
- Qty Req: 1
Our price: $1.23 List price: $1.75
Body, restrictor orifice, #8SAE x 1/2” NPT
- Ref No: 21
- Part No: BAC808SAE
- Qty Req: 1
Our price: $20.30 List price: $29.00
O-ring, orifice insert
- Ref No: 22
- Part No: 41448
- Qty Req: 1
Our price: $1.23 List price: $1.75
Restrictor orifice insert, .125
- Ref No: 23
- Part No: BAC798
- Qty Req: 1
Our price: $10.15 List price: $14.50
Reverse check assembly, #10 SAE x 1/2” NPT
- Ref No: 24
- Part No: BAC7810SAE
- Qty Req: 1
Our price: $28.00 List price: $40.00
Flow limiter (optional)
- Ref No: 25
- Part No: LS304N
- Qty Req: 1
Our price: $80.50 List price: $115.00
