Hypro D50GRGI8 Pump

Hypro D50GRGI8 Pump

Brand:
Hypro
Weight:
48.0 lb
Item #
9910D50GRGI8A
Skip to product information
1 of 1

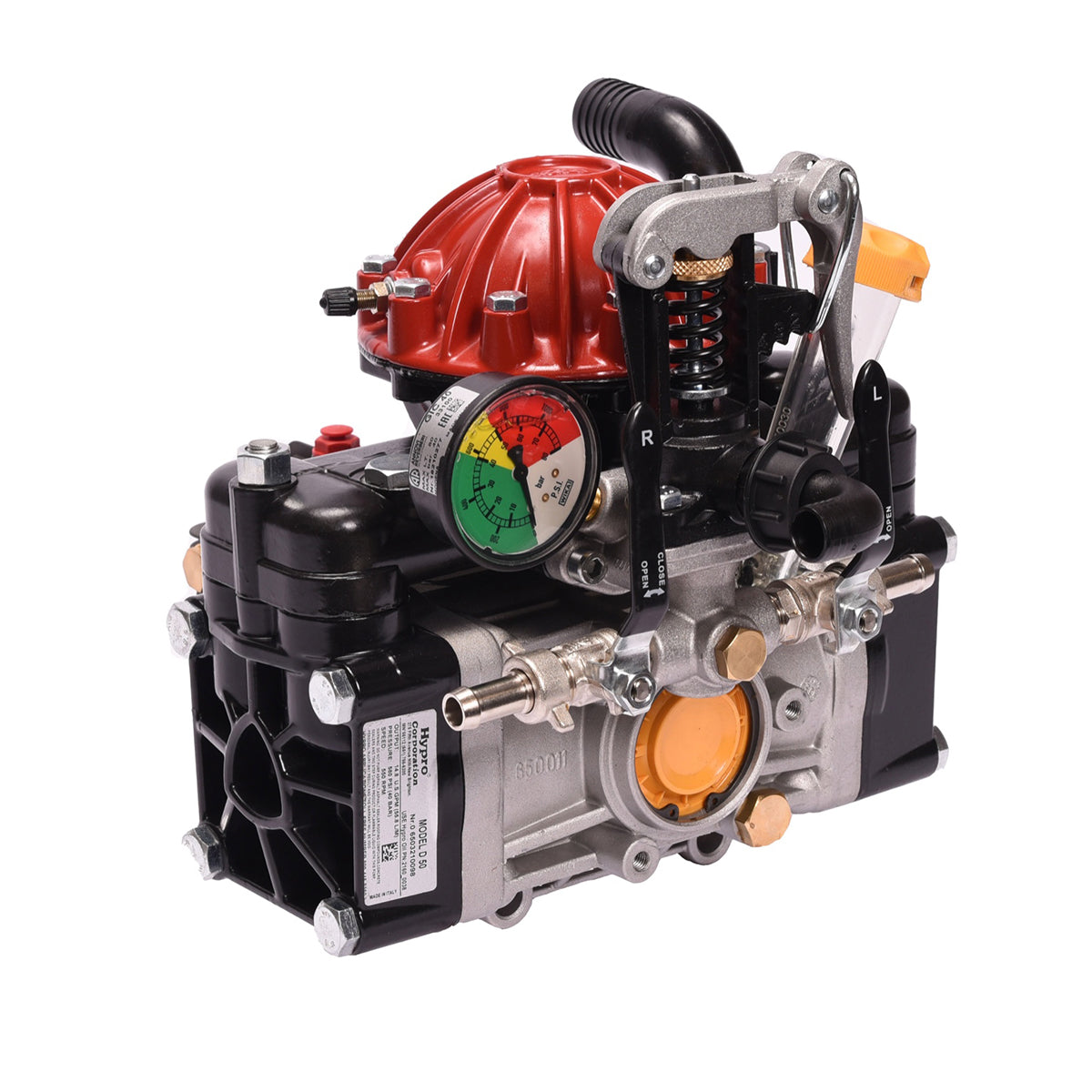

Hypro D50GRGI8 Pump

Hypro D50GRGI8 Pump

Brand:
Hypro
Weight:
48.0 lb
Item #
9910D50GRGI8A

Regular price $1,297.50
Sale price $1,297.50 Regular price List Price: $2,595.00

Earn 3,893 points with this purchase.

View full details

Collapsible content

Product Overview

Choose this Hypro D50GRGI8 Pump for your medium-pressure spraying systems. With a maximum pressure of 580 PSI and an upper flow rate of 14.8 GPM, it's ideally suited for deploying liquids in an agricultural environment, including pesticides, herbicides and liquid fertilizers. This pump comes complete with a pressure regulator and gearbox for connection to a gas engine.

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps, components, and related parts. Products with Hypro labeling will be unavailable soon.

Manufacturer description

Hypro medium pressure diaphragm pumps are recommended for spraying herbicides, pesticides, liquid fertilizers, and many other hard-to-handle fluids. Low-cost maintenance and almost wear-free operation make these pumps ideal for a wide variety of spraying jobs. Pressure and output are designed for optimum performance of small to medium-sized sprayers. Hypro medium pressure diaphragm pumps can be adapted for male 1-3/8" splined shaft, female 1-3/8" splined shaft, 1" solid shaft, or gear reduction drive options. Pumps include a pulsation dampener except for Models 9910-D303, D403, and D503s

Features

  • Max flow: 14.8 gpm
  • Max pressure: 580 psi

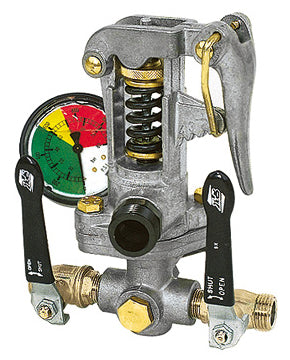

  • Includes 9910-GS40GI pressure regulator and 9910-KIT1642 gearbox with 1" hollow shaft for mounting on 8 to 9 hp gas engines
  • Port sizes: 1-1/4" HB inlet, (2) 1/2" HB outlet, 3/4" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 2, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F
  • Weight: 48 lbs

Parts breakdown

Diagram

Diagram parts
