Hypro D503GRGI Pump

Hypro D503GRGI Pump

Brand:
Hypro
Weight:
42.25 lb
Item #
9910D503GRGI
Skip to product information
1 of 1

Hypro D503GRGI Pump

Hypro D503GRGI Pump

Brand:
Hypro
Weight:
42.25 lb
Item #
9910D503GRGI

Regular price $1,360.00
Sale price $1,360.00 Regular price List Price: $2,887.50

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 4,080 points with this purchase.

View full details

Collapsible content

Product Overview

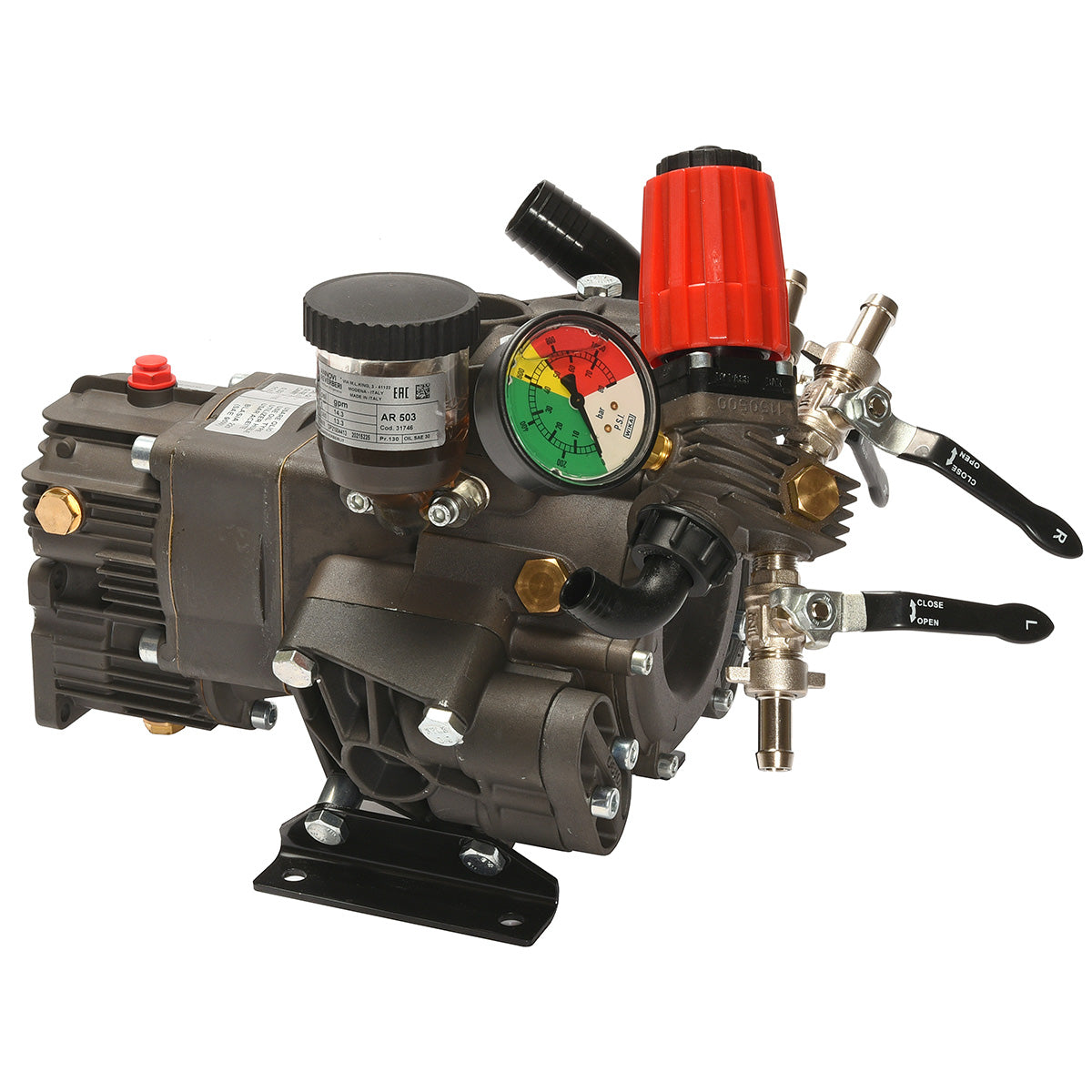

The Hypro D503 pump is an anodized, three semi-hydraulic diaphragm, and medium pressure pump that ensures top-level performance from small to medium sized sprayers. This pump can produce 14.3 gpm and 580 psi. The Hypro D503 pump is adaptable for male or female 1-3/8" splined shafts, 1" solid shafts, or gear reduction drive. This pump can be connected to a gas engine to spray herbicides, pesticides, and many other fluids.

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps, components, and related parts. Products with Hypro labeling will be unavailable soon.

Manufacturer description

Hypro medium pressure diaphragm pumps are recommended for spraying herbicides, pesticides, liquid fertilizers, and many other hard-to-handle fluids. Low-cost maintenance and almost wear-free operation make these pumps ideal for a wide variety of spraying jobs. Pressure and output are designed for optimum performance of small to medium-sized sprayers. Hypro medium pressure diaphragm pumps can be adapted for male 1-3/8" splined shaft, female 1-3/8" splined shaft, 1" solid shaft, or gear reduction drive options. Pumps include a pulsation dampener except for Models 9910-D303, D403, and D503s.

Features

  • Max flow: 14.3 gpm
  • Max pressure: 580 psi
  • Max rpm: 550

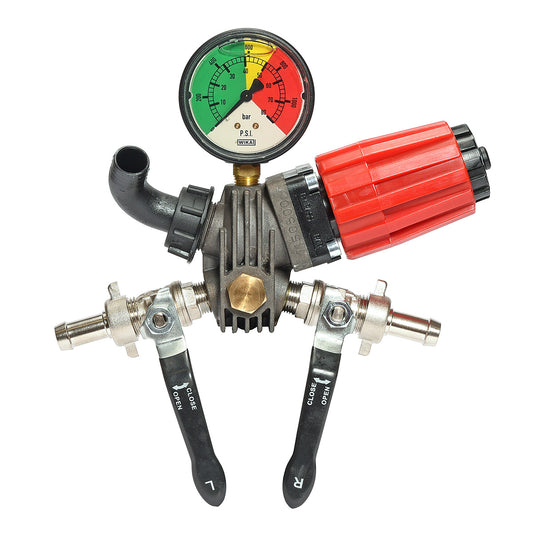

  • Includes 9910-RM40 pressure regulator and 9910-KIT1642 gearbox with 1" hollow shaft for mounting to 8-11 hp gas engines
  • Port sizes: 1-1/4" HB inlet, (2) 1/2" HB outlet, 1" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 3, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F
  • Weight: 43 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Diaphragm Bolt
    • Ref No: 1
    • Part No: 9910580360
    • Qty Req: 3
    Our price: $14.04 List price: $17.33
  • Retaining Washer
    • Ref No: 2
    • Part No: 99101040180
    • Qty Req: 3
    Our price: $18.78 List price: $23.18
  • Diaphragm, Buna-N (Opt.)
    • Ref No: 3
    • Part No: 9910620080
    • Qty Req: 3
    Our price: $31.54 List price: $38.94
  • Piston Diaphragm, Desmopan (Std.)
    • Ref No: 3
    • Part No: 9910620085
    • Qty Req: 3
    Our price: $34.19 List price: $42.21
  • Piston Sleeve
    • Ref No: 4
    • Part No: 99101300110
    • Qty Req: 3
    Our price: $114.79 List price: $141.71
  • Piston Ring
    • Ref No: 5
    • Part No: 9910160230
    • Qty Req: 3
    Our price: $15.28 List price: $18.87
  • Piston
    • Ref No: 6
    • Part No: 9910620120
    • Qty Req: 3
    Our price: $55.56 List price: $68.59
  • Connecting Rod Pin
    • Ref No: 7
    • Part No: 9910380300
    • Qty Req: 3
    Our price: $25.24 List price: $31.16
  • Ring Pin
    • Ref No: 8
    • Part No: 9910380080
    • Qty Req: 3
    Our price: $2.73 List price: $3.37
  • Connecting Rod
    • Ref No: 9
    • Part No: 99101300140
    • Qty Req: 3
    Our price: $53.93 List price: $66.58
  • Shaft
    • Ref No: 10
    • Part No: 99101300170
    • Qty Req: 1
    Our price: $302.83 List price: $373.86
  • Retaining Ring
    • Ref No: 11
    • Part No: 99101300120
    • Qty Req: 2
    Our price: $21.17 List price: $26.14
  • Retaining Ring
    • Ref No: 12
    • Part No: 99101300240
    • Qty Req: 1
    Our price: $8.80 List price: $10.87
  • Seal
    • Ref No: 13
    • Part No: 99101300220
    • Qty Req: 1
    Our price: $28.70 List price: $35.43
  • Bearing
    • Ref No: 14
    • Part No: 99101300210
    • Qty Req: 1
    Our price: $85.25 List price: $105.25
  • Retaining Ring
    • Ref No: 15
    • Part No: 99101260790
    • Qty Req: 1
    Our price: $4.66 List price: $5.75
  • Bearing
    • Ref No: 16
    • Part No: 9910180400
    • Qty Req: 1
    Our price: $125.36 List price: $154.77
  • O-Ring
    • Ref No: 17
    • Part No: 9910740290
    • Qty Req: 5
    Our price: $1.92 List price: $2.37
  • Manifold Plate
    • Ref No: 18
    • Part No: 99101300020
    • Qty Req: 1
    Our price: $82.22 List price: $101.51
  • Retaining Ring
    • Ref No: 19
    • Part No: 99101260770
    • Qty Req: 1
    Our price: $1.64 List price: $2.02
  • Seal
    • Ref No: 20
    • Part No: 99101300230
    • Qty Req: 1
    Our price: $20.89 List price: $25.79
  • O-Ring
    • Ref No: 21
    • Part No: 99101300270
    • Qty Req: 1
    Our price: $12.58 List price: $15.53
  • O-Ring
    • Ref No: 22
    • Part No: 9910640030
    • Qty Req: 2
    Our price: $8.69 List price: $10.73
  • Bolt
    • Ref No: 23
    • Part No: 9910880280
    • Qty Req: 6
    Our price: $1.60 List price: $1.97
  • Bolt
    • Ref No: 24
    • Part No: 99101040370
    • Qty Req: 6
    Our price: $4.02 List price: $4.96
  • Outlet Manifold
    • Ref No: 25
    • Part No: 99101300030
    • Qty Req: 1
    Our price: $187.23 List price: $231.15
  • Outlet ball valve w/o barb
    • Ref No: 27
    • Part No: 9910130491
    • Qty Req: 1
    Our price: $85.55 List price: $106.94
  • O-Ring
    • Ref No: 30
    • Part No: 9910390180
    • Qty Req: 2
    Our price: $1.51 List price: $1.86
  • Retainer Clip
    • Ref No: 31
    • Part No: 99101040690
    • Qty Req: 2
    Our price: $24.41 List price: $30.14
  • O-Ring
    • Ref No: 34
    • Part No: 9910390290
    • Qty Req: 2
    Our price: $2.10 List price: $2.59
  • Threaded Adapter
    • Ref No: 35
    • Part No: 9910450120
    • Qty Req: 1
    Our price: $15.37 List price: $18.98
  • Body
    • Ref No: 36
    • Part No: 99101300010
    • Qty Req: 1
    Our price: $557.63 List price: $688.43
  • Ring Nut
    • Ref No: 37
    • Part No: 9910580060
    • Qty Req: 1
    Our price: $13.62 List price: $16.82
  • Hose Barb 1-1/4"
    • Ref No: 38
    • Part No: 9910580040
    • Qty Req: 1
    Our price: $22.07 List price: $27.25
  • Bolt
    • Ref No: 39
    • Part No: 9910200230
    • Qty Req: 4
    Our price: $3.01 List price: $3.72
  • Bolt
    • Ref No: 40
    • Part No: 9910640230
    • Qty Req: 4
    Our price: $3.94 List price: $4.86
  • O-Ring
    • Ref No: 41
    • Part No: 9910480440
    • Qty Req: 6
    Our price: $1.76 List price: $2.17
  • Right Head
    • Ref No: 42
    • Part No: 99101300101
    • Qty Req: 2
    Our price: $155.49 List price: $191.96
  • Left Head
    • Ref No: 43
    • Part No: 99101300102
    • Qty Req: 1
    Our price: $155.49 List price: $191.96
  • O-Ring
    • Ref No: 45
    • Part No: 9910620030
    • Qty Req: 6
    Our price: $1.97 List price: $2.43
  • O-Ring
    • Ref No: 46
    • Part No: 9910540361
    • Qty Req: 6
    Our price: $1.97 List price: $2.43
  • Valve Retainer
    • Ref No: 47
    • Part No: 99101300190
    • Qty Req: 3
    Our price: $46.27 List price: $57.12
  • Black oil tank cap for Hypro/AR Diaphragm Pumps
    • Ref No: 49
    • Part No: 99101040322
    • Qty Req: 1
    Our price: $32.14 List price: $39.68
  • Bolt
    • Ref No: 48
    • Part No: 9910540290
    • Qty Req: 6
    Our price: $2.98 List price: $3.68
  • O-Ring
    • Ref No: 50
    • Part No: 9910650920
    • Qty Req: 1
    Our price: $2.92 List price: $3.60
  • Oil sight glass for Hypro D403, D115 and D135
    • Ref No: 51
    • Part No: 99101040310
    • Qty Req: 1
    Our price: $83.85 List price: $103.52
  • Washer
    • Ref No: 52
    • Part No: 9910550331
    • Qty Req: 2
    Our price: $1.51 List price: $1.86
  • Plug
    • Ref No: 55
    • Part No: 9910130171
    • Qty Req: 1
    Our price: $4.75 List price: $5.86
  • Plug
    • Ref No: 56
    • Part No: 9910770070
    • Qty Req: 1
    Our price: $4.07 List price: $5.02
  • Spacer
    • Ref No: 57
    • Part No: 99101300280
    • Qty Req: 2
    Our price: $4.28 List price: $5.28
  • Mounting Base
    • Ref No: 58
    • Part No: 99101300090
    • Qty Req: 2
    Our price: $16.14 List price: $19.93
  • Bolt
    • Ref No: 59
    • Part No: 99101300360
    • Qty Req: 4
    Our price: $6.08 List price: $7.51
  • M10 X 16 Bolt
    • Ref No: 60
    • Part No: 9910820670
    • Qty Req: 4
    Our price: $2.48 List price: $3.06
  • Shield, 199 mm
    • Ref No: 61
    • Part No: 99101500350
    • Qty Req: 1
    Our price: $52.50 List price: $64.82
  • Thru-Shaft (Opt.)
    • Ref No: 62
    • Part No: 99101300160
    • Qty Req: 1
    Our price: $476.84 List price: $588.69
  • Key
    • Ref No: 63
    • Part No: 9910650250
    • Qty Req: 1
    Our price: $4.95 List price: $6.11
  • PTO shaft adapter
    • Ref No: 68
    • Part No: 9910650300
    • Qty Req: 1
    Our price: $163.63 List price: $202.01
  • Bolt
    • Ref No: 70
    • Part No: 9910680350
    • Qty Req: 1
    Our price: $2.48 List price: $3.06
  • Outlet adapter (3/4" NPT)
    • Ref No: 71
    • Part No: 99101040760
    • Qty Req: 1
    Our price: $53.33 List price: $65.84
  • 3/8" Hose Barb & Nut
    • Ref No: 72
    • Part No: 9910110131
    • Qty Req: 1
    Our price: $11.15 List price: $13.76
  • Cotter Pin
    • Ref No: 80
    • Part No: 99101040950
    • Qty Req: 1
    Our price: $1.39 List price: $1.71
