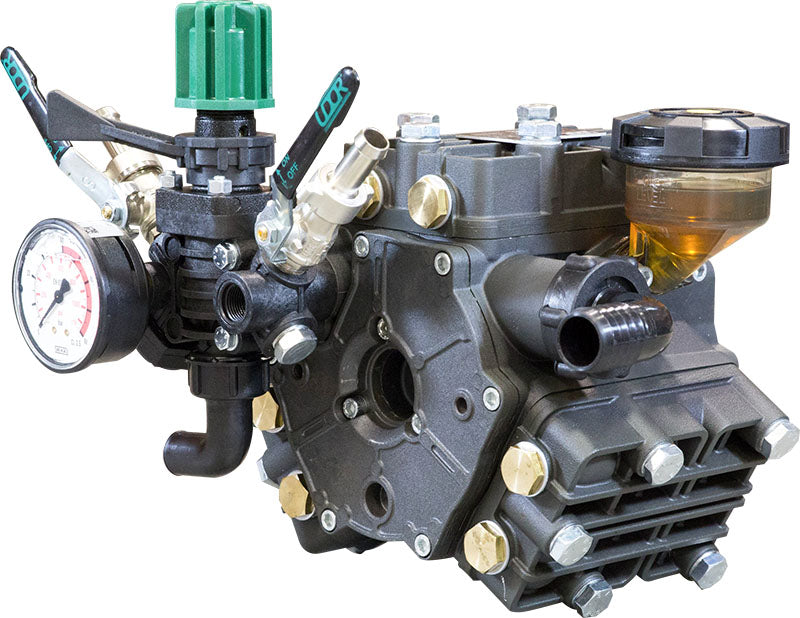

The Udor KAPPA-43 diaphragm pump is extremely reliable because of its anodized aluminum construction, making it impervious to any industrial fluid that you need to use it for. With an adjustable pressure regulator, a manual dump lever, dual ball valve outlets and a pressure gauge, you have full control in the field.

KAPPA-43 3-cylinder medium pressure diaphragm pump with control unit featuring adjustable pressure regulator, manual dump lever, dual ball valve outlets, and pressure gauge. Includes gearbox for 4-6.5 HP gasoline engines with 3/4" shafts. KAPPA-43 models feature 25mm solid keyed shaft. Ideal for agricultural spraying, lawn care, pest control, de-icing, hydrostatic testing, and cleaning.

Construction: Anodized aluminum body with stainless steel liquid handling parts. Control valve and pressure gauge standard.

Features: Can run dry. Self-priming operation. Visual oil sight gauges. Stainless steel check valves. Large oil bath crank case with drain plugs for easy maintenance. Compatible with liquid fertilizers, abrasives, pesticides, de-icing materials, and suspension products. Adapts to PTO, gas engine, hydraulic, and belt drive. Max fluid temp: 140°F (custom to 200°F). One-piece stainless steel diaphragm bolts. Heavy duty urethane diaphragms.

Download Product Manual

• Max flow: 10.5 gpm
• Max pressure: 560 psi
• Includes 6010.93 control unit
• Port sizes: 1" HB inlet, (2) 1/2" HB outlet and 3/4" HB bypass
• Pump shaft rotation: CW and CCW
• Diaphragms: 3, semi-hydraulic, Desmopan® standard Buna available
• Housing: Anodized aluminum
• Recommended gearbox: 5071.75 with 3/4" hollow shaft for mounting on 5 to 6.5 hp engines
• Max fluid temperature: 140°F
• Weight: 29 lbs
