Udor KAPPA-40 Diaphragm Pump **Design Change - Please Read Notes**

Udor KAPPA-40 Diaphragm Pump **Design Change - Please Read Notes**

Brand:
Udor
Weight:
29.0 lb
Item #
KAPPA40
Skip to product information
1 of 1

Udor KAPPA-40 Diaphragm Pump **Design Change - Please Read Notes**

Udor KAPPA-40 Diaphragm Pump **Design Change - Please Read Notes**

Brand:
Udor
Weight:
29.0 lb
Item #
KAPPA40

Regular price $760.71
Sale price $760.71 Regular price List Price: $1,383.10

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 2,282 points with this purchase.

View full details

Collapsible content

Product Overview

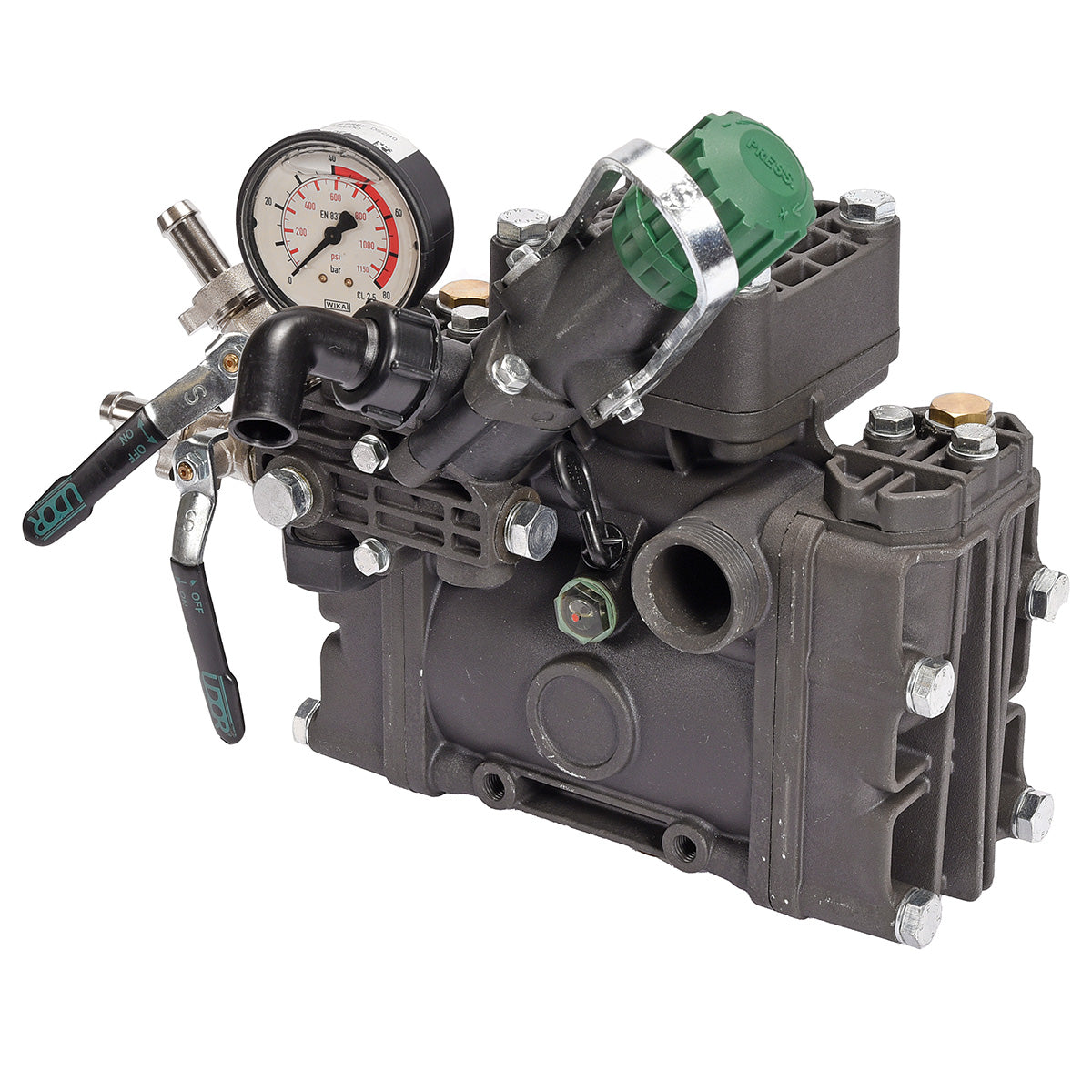

Udor KAPPA-40 Diaphragm Pump

**Design Change - Please Read Notes**

As a self-priming pump, the Udor KAPPA-40 Diaphragm Pump is ideal for situations when a pump may run dry. This product is most commonly used for line testing and in landscaping, construction or residential settings. It is able to transport a variety of liquids and chemicals and can also be used as a transfer pump.

**Please note Udor has changed the design of this pump. You can no longer use the existing gearbox if you purchase this pump only. Please contact a customer service technician for assistance**

Manufacturer description

Two diaphragm pump with universal drive face, pulsation dampener & control unit with adjustable pressure regulator, manual dump lever, dual ball valve outlets & pressure gauge. The KAPPA series pumps are internally manifolded with anodized aluminum construction. KAPPA-30 & KAPPA-40 medium pressure, 2-cylinder diaphragm pumps are excellent choices for various horticulture, agricultural, lawn care, pest control and turf spraying applications. They are also effectively used in other applications such as aircraft de-icing, hydrostatic testing and cleaning. KAPPA-30 & KAPPA-40 pumps are constructed of anodized aluminum with anodized aluminum and stainless steel liquid handling parts. Built-in pulsation dampener, control valve and pressure gauge are standard on all models. Features: Can Be Run Dry. Visual Oil Sight Gauges. Self-Priming Operation. Stainless Steel Check Valves. Large Capacity Oil Bath Crank Cases With Drain Plugs for Ease of Maintenance. Compatible with Most Fluids, Including: Liquid Fertilizers, Abrasive Materials, Suspension Products, Pesticides, De-Icing Materials and Other Hard To Handle Fluids. Adapt Easily To PTO, Gas Engine, Hydraulic And Belt Drive Applications. Maximum Fluid Temperature, 140° F. Custom Pumps Available To 200° F. Largest Selection of Flows, Pressures and Drive Options Available. Over 50 Years Of Diaphragm Pump Experience. One Piece Stainless Steel Diaphragm Bolts. Heavy Duty Pre-Formed Urethane Diaphragms.

**Please note Udor has changed the design of this pump. You can no longer use the existing gearbox if you purchase this pump only. Please contact a customer service technician for assistance**

Features

  • Max flow: 10.5 gpm
  • Max pressure: 560 psi
  • Includes 6010.24 control unit
  • Shaft: Flanged for shaft kit or gearbox
  • Port sizes: 1" HB inlet, (2) 1/2" HB outlet and 3/4" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 2, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F
  • Weight: 29 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Retaining Ring (KAPPA-30, KAPPA-40, KAPPA-55)
    • Ref No: 4
    • Part No: 000106
    • Qty Req: 2
    Our price: $36.02 List price: $43.40
  • Crankshaft (T.S. Models Only)
    • Ref No: 17
    • Part No: 000272
    • Qty Req: 1
    Our price: $552.95 List price: $666.20
  • Crankshaft
    • Ref No: 21
    • Part No: 000271
    • Qty Req: 1
    Our price: $396.57 List price: $477.80
  • Bearing (KAPPA-30/40/55)
    • Ref No: 133
    • Part No: 000602
    • Qty Req: 1
    Our price: $67.81 List price: $81.70
  • Seal (KAPPA-30/40/55, RO-70)
    • Ref No: 155
    • Part No: 000701
    • Qty Req: 1
    Our price: $41.92 List price: $50.50
  • Oil Seal
    • Ref No: 163
    • Part No: 000719
    • Qty Req: 1
    Our price: $20.42 List price: $24.60
  • Diaphragm Bolt
    • Ref No: 240
    • Part No: 010204
    • Qty Req: 2
    Our price: $21.66 List price: $26.10
  • Inlet Hose Barb (KAPPA-30/33/40/43, RO-160)
    • Ref No: 357
    • Part No: 020218
    • Qty Req: 1
    Our price: $15.44 List price: $18.60
  • Piston Sleeve (KAPPA-40, ZETA-40)
    • Ref No: 483
    • Part No: 020608
    • Qty Req: 2
    Our price: $127.07 List price: $153.10
  • Accumulator Head
    • Ref No: 567
    • Part No: 020834
    • Qty Req: 1
    Our price: $90.39 List price: $108.90
  • Pump Body (KAPPA-30/40)
    • Ref No: 634
    • Part No: 020940
    • Qty Req: 1
    Our price: $272.82 List price: $328.70
  • Pump Body (KAPPA-40/TS Only)
    • Ref No: 635
    • Part No: 020941
    • Qty Req: 1
    Our price: $284.52 List price: $342.80
  • Ball Bearing (KAPPA-30/40/55/75/100, RO-70)
    • Ref No: 698
    • Part No: 021401
    • Qty Req: 1
    Our price: $231.32 List price: $278.70
  • Retainer Washer (KAPPA-30/40/55/75/100)
    • Ref No: 794
    • Part No: 030114
    • Qty Req: 2
    Our price: $13.20 List price: $15.90
  • Washer (KAPPA-30/40/55)
    • Ref No: 803
    • Part No: 030130
    • Qty Req: 1
    Our price: $8.96 List price: $10.80
  • Spacer (KAPPA-30/40/55)
    • Ref No: 831
    • Part No: 030250
    • Qty Req: 2
    Our price: $13.70 List price: $16.50
  • Suction Nut
    • Ref No: 1038
    • Part No: 060418
    • Qty Req: 1
    Our price: $13.20 List price: $15.90
  • Aluminum Gasket
    • Ref No: 1072
    • Part No: 060509
    • Qty Req: 1
    Our price: $1.74 List price: $2.10
  • Air Valve Assembly
    • Ref No: 1126
    • Part No: 060816
    • Qty Req: 1
    Our price: $20.50 List price: $24.70
  • Piston Diaphragm Buna-N (Opt.)
    • Ref No: 1299
    • Part No: 090313
    • Qty Req: 2
    Our price: $29.05 List price: $35.00
  • Accumulator Diaphragm
    • Ref No: 1300
    • Part No: 090314
    • Qty Req: 1
    Our price: $27.89 List price: $33.60
  • O-Ring
    • Ref No: 1376
    • Part No: 110116
    • Qty Req: 1
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: 1381
    • Part No: 110127
    • Qty Req: 4
    Our price: $2.82 List price: $3.40
  • O-Ring
    • Ref No: 1382
    • Part No: 110129
    • Qty Req: 4
    Our price: $2.49 List price: $3.00
  • O-Ring
    • Ref No: 1389
    • Part No: 110141
    • Qty Req: 1
    Our price: $2.57 List price: $3.10
  • Piston
    • Ref No: 1570
    • Part No: 120507
    • Qty Req: 2
    Our price: $91.80 List price: $110.60
  • Valve Assembly for Udor Diaphragm Pumps
    • Ref No: 1702
    • Part No: 600601
    • Qty Req: 4
    Our price: $29.63 List price: $35.70
  • Head Assembly
    • Ref No: 1721
    • Part No: 601706
    • Qty Req: 2
    Our price: $132.05 List price: $159.10
  • Piston/Rod Assembly (KAPPA-30/40)
    • Ref No: 1795
    • Part No: 601521
    • Qty Req: 2
    Our price: $161.44 List price: $194.50
  • Connecting Rod Pin
    • Ref No: 1964
    • Part No: 150203
    • Qty Req: 2
    Our price: $15.36 List price: $18.50
  • Snap Ring
    • Ref No: 2045
    • Part No: 150601
    • Qty Req: 1
    Our price: $7.64 List price: $9.20
  • Snap Ring
    • Ref No: 2051
    • Part No: 150615
    • Qty Req: 4
    Our price: $1.91 List price: $2.30
  • Connecting Rod
    • Ref No: 2147
    • Part No: 151918
    • Qty Req: 2
    Our price: $51.29 List price: $61.80
  • Oil Plug
    • Ref No: 2251
    • Part No: 160302
    • Qty Req: 1
    Our price: $8.47 List price: $10.20
  • Oil Plug (O-Rings Sold Separately 110116)
    • Ref No: 2262
    • Part No: 160324
    • Qty Req: 1
    Our price: $10.04 List price: $12.10
  • Head Plug
    • Ref No: 2268
    • Part No: 160332
    • Qty Req: 4
    Our price: $7.89 List price: $9.50
  • Oil Sight Glass
    • Ref No: 2269
    • Part No: 160333
    • Qty Req: 1
    Our price: $13.61 List price: $16.40
  • Head Bolt (Allen Head-Old Style)
    • Ref No: 2602
    • Part No: 180525
    • Qty Req: 14
    Our price: $3.07 List price: $3.70
  • Washer
    • Ref No: 7671
    • Part No: 140309
    • Qty Req: 14
    Our price: $1.33 List price: $1.60
  • Head Bolt (Hex Head - New Style)
    • Ref No: 7948
    • Part No: 180445
    • Qty Req: 14
    Our price: $4.32 List price: $5.20
  • Piston Diaphragm Desmopan (Std.)
    • Ref No: 8117
    • Part No: 090338
    • Qty Req: 2
    Our price: $50.22 List price: $60.50
