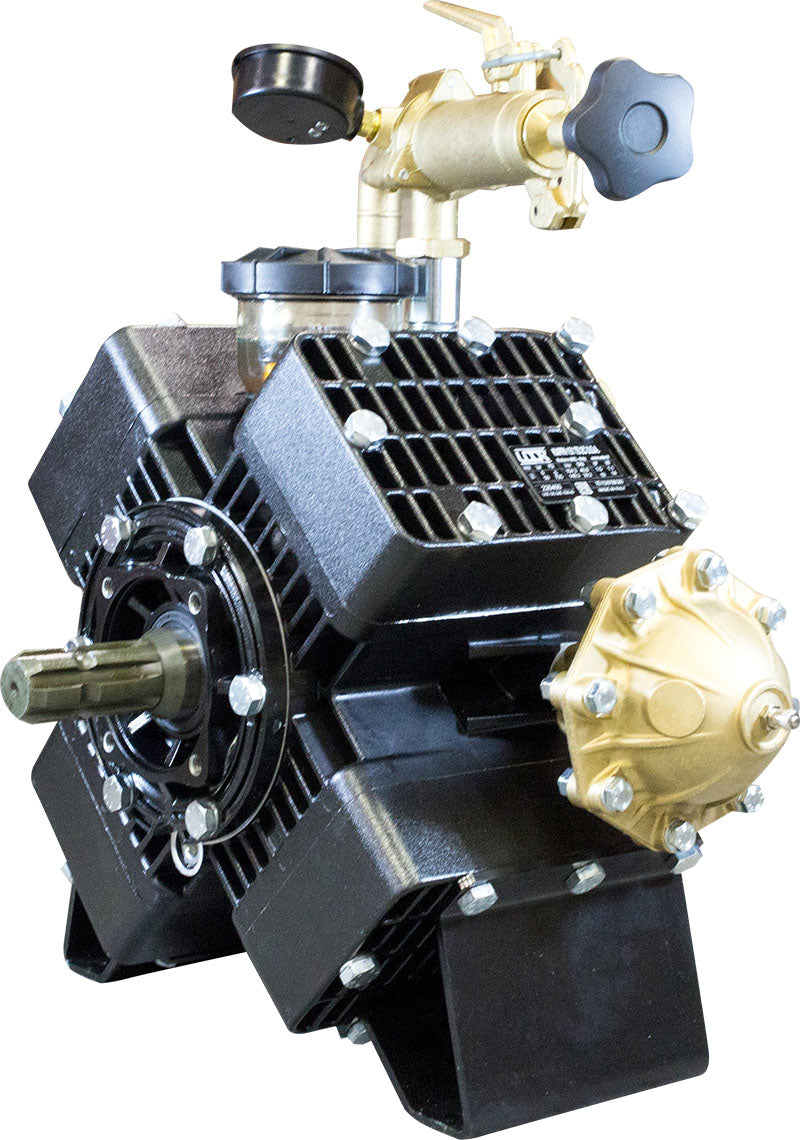

Udor KAPPA-120/CC Diaphragm Pump

Udor KAPPA-120/CC Diaphragm Pump

Brand:
Udor
Weight:
105.0 lb
Item #
KAPPA120CC
1 1

Udor KAPPA-120/CC Diaphragm Pump

Udor KAPPA-120/CC Diaphragm Pump

Brand:
Udor
Weight:
105.0 lb
Item #
KAPPA120CC

$2,291.85
$2,291.85 List Price: $4,167.00

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 6,876 points with this purchase.

See Details

View full details

Product Overview

35 gpm, 700 psi.

Four diaphragm pump with pulsation dampener & control unit with adjustable pressure regulator, manual dump lever & pressure gauge. Has dual 1-3/8", 6-spline male PTO shaft.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Connecting Rod Ring
    • Ref No: 6
    • Part No: 000108
    • Qty Req: 2
    Our price: $59.84 List price: $72.10
  • Accumulator Body
    • Ref No: 78
    • Part No: 000310
    • Qty Req: 1
    Our price: $243.85 List price: $293.80
  • Seal
    • Ref No: 156
    • Part No: 000702
    • Qty Req: 2
    Our price: $18.27 List price: $22.01
  • Seal
    • Ref No: 172
    • Part No: 000734
    • Qty Req: 1
    Our price: $23.41 List price: $28.20
  • Seal (KAPPA-120, KAPPA-15/12V, KAPPA18/12V, KAPPA-7/12V)
    • Ref No: 173
    • Part No: 000735
    • Qty Req: 1
    Our price: $38.60 List price: $46.50
  • Diaphragm Bolt (BETA-150/200/240, OMEGA-140/170, RO-70/160/210/250/320)
    • Ref No: 238
    • Part No: 0010203
    • Qty Req: 4
    Our price: $18.59 List price: $22.40
  • 1/2" Hose Barb
    • Ref No: 358
    • Part No: 020219
    • Qty Req: 2
    Our price: $10.29 List price: $12.40
  • Piston Sleeve (KAPPA-120)
    • Ref No: 501
    • Part No: 020628
    • Qty Req: 4
    Our price: $190.24 List price: $229.20
  • Accumulator Head
    • Ref No: 558
    • Part No: 020821
    • Qty Req: 1
    Our price: $227.09 List price: $273.60
  • Oil Cap
    • Ref No: 559
    • Part No: 020822
    • Qty Req: 1
    Our price: $16.52 List price: $19.90
  • Pump Body (KAPPA-120)
    • Ref No: 631
    • Part No: 020933
    • Qty Req: 1
    Our price: $1,579.66 List price: $1,903.20
  • Bearing (KAPPA-120)
    • Ref No: 708
    • Part No: 021416
    • Qty Req: 2
    Our price: $311.91 List price: $375.80
  • Air Valve Cap (KAPPA-100/120, RO-70/110/160)
    • Ref No: 747
    • Part No: 021801
    • Qty Req: 1
    Our price: $3.07 List price: $3.70
  • Washer (KAPPA-120)
    • Ref No: 805
    • Part No: 030134
    • Qty Req: 2
    Our price: $72.21 List price: $87.00
  • Nut
    • Ref No: 845
    • Part No: 030301
    • Qty Req: 8
    Our price: $1.91 List price: $2.30
  • Retainer (KAPPA-120)
    • Ref No: 885
    • Part No: 050181
    • Qty Req: 1
    Our price: $204.68 List price: $246.60
  • Flange (KAPPA-120)
    • Ref No: 886
    • Part No: 050180
    • Qty Req: 1
    Our price: $282.03 List price: $339.80
  • Flange (KAPPA-120)
    • Ref No: 914
    • Part No: 050182
    • Qty Req: 1
    Our price: $214.80 List price: $258.80
  • Barb Nut
    • Ref No: 1034
    • Part No: 060409
    • Qty Req: 2
    Our price: $9.55 List price: $11.50
  • Barb Nut
    • Ref No: 1036
    • Part No: 060448
    • Qty Req: 1
    Our price: $67.81 List price: $81.70
  • Gasket
    • Ref No: 1071
    • Part No: 060505
    • Qty Req: 2
    Our price: $1.83 List price: $2.20
  • Gasket
    • Ref No: 1078
    • Part No: 060542
    • Qty Req: 8
    Our price: $2.41 List price: $2.90
  • Air Valve Assembly
    • Ref No: 1122
    • Part No: 060816
    • Qty Req: 1
    Our price: $20.50 List price: $24.70
  • Ball Valve-Right
    • Ref No: 1124
    • Part No: 060845
    • Qty Req: 1
    Our price: $54.53 List price: $65.70
  • Diaphragm Buna-N (Opt.)
    • Ref No: 1291
    • Part No: 090302
    • Qty Req: 4
    Our price: $31.46 List price: $37.90
  • Accumulator Diaphragm
    • Ref No: 1301
    • Part No: 090316
    • Qty Req: 1
    Our price: $40.92 List price: $49.30
  • 3/4" Adapter Fitting
    • Ref No: 1310
    • Part No: 100104
    • Qty Req: 1
    Our price: $33.70 List price: $40.60
  • O-Ring
    • Ref No: 1365
    • Part No: 110101
    • Qty Req: 8
    Our price: $4.15 List price: $5.00
  • O-Ring
    • Ref No: 1368
    • Part No: 110104
    • Qty Req: 1
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: 1376
    • Part No: 110116
    • Qty Req: 1
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: 1382
    • Part No: 110129
    • Qty Req: 2
    Our price: $2.49 List price: $3.00
  • O-Ring
    • Ref No: 1385
    • Part No: 110132
    • Qty Req: 1
    Our price: $6.97 List price: $8.40
  • O-Ring
    • Ref No: 1386
    • Part No: 110133
    • Qty Req: 1
    Our price: $5.56 List price: $6.70
  • O-Ring
    • Ref No: 1398
    • Part No: 110142
    • Qty Req: 1
    Our price: $2.82 List price: $3.40
  • O-Ring
    • Ref No: 1408
    • Part No: 110163
    • Qty Req: 1
    Our price: $12.45 List price: $15.00
  • O-Ring
    • Ref No: 1415
    • Part No: 110177
    • Qty Req: 2
    Our price: $2.82 List price: $3.40
  • O-Ring
    • Ref No: 1419
    • Part No: 110180
    • Qty Req: 1
    Our price: $21.08 List price: $25.40
  • O-Ring
    • Ref No: 1420
    • Part No: 110171
    • Qty Req: 1
    Our price: $10.29 List price: $12.40
  • Mounting Rail
    • Ref No: 1459
    • Part No: 120236
    • Qty Req: 2
    Our price: $56.77 List price: $68.40
  • Oil Reservoir
    • Ref No: 1492
    • Part No: 120330
    • Qty Req: 1
    Our price: $49.97 List price: $60.20
  • Piston
    • Ref No: 1569
    • Part No: 120506
    • Qty Req: 4
    Our price: $104.75 List price: $126.20
  • Valve Assembly
    • Ref No: 1709
    • Part No: 600608
    • Qty Req: 8
    Our price: $42.08 List price: $50.70
  • Oil Reservoir Assembly
    • Ref No: 1741
    • Part No: 603302
    • Qty Req: 1
    Our price: $84.49 List price: $101.80
  • 6031.02 Pulsation Dampener
    • Ref No: 1804
    • Part No: 603102
    • Qty Req: 1
    Our price: $401.28 List price: $549.70
  • Washer
    • Ref No: 1843
    • Part No: 140307
    • Qty Req: 4
    Our price: $1.33 List price: $1.60
  • Washer
    • Ref No: 1844
    • Part No: 140309
    • Qty Req: 24
    Our price: $1.33 List price: $1.60
  • Washer
    • Ref No: 1845
    • Part No: 140310
    • Qty Req: 2
    Our price: $0.94 List price: $1.13
  • Connecting Rod Pin
    • Ref No: 1962
    • Part No: 150201
    • Qty Req: 4
    Our price: $22.00 List price: $26.50
  • Snap Ring
    • Ref No: 2046
    • Part No: 150602
    • Qty Req: 8
    Our price: $1.91 List price: $2.30
  • Connecting Rod
    • Ref No: 2151
    • Part No: 151924
    • Qty Req: 4
    Our price: $83.91 List price: $101.10
  • Head Plug
    • Ref No: 2268
    • Part No: 160332
    • Qty Req: 2
    Our price: $7.89 List price: $9.50
  • Plug
    • Ref No: 2272
    • Part No: 1603A3
    • Qty Req: 8
    Our price: $6.97 List price: $8.40
  • Head
    • Ref No: 2326
    • Part No: 160451
    • Qty Req: 4
    Our price: $202.02 List price: $243.40
  • Bolt
    • Ref No: 2465
    • Part No: 180403
    • Qty Req: 6
    Our price: $2.32 List price: $2.80
  • Bolt
    • Ref No: 2473
    • Part No: 180454
    • Qty Req: 8
    Our price: $2.24 List price: $2.70
  • Bolt
    • Ref No: 2487
    • Part No: 180425
    • Qty Req: 32
    Our price: $5.15 List price: $6.20
  • Bolt
    • Ref No: 2584
    • Part No: 180506
    • Qty Req: 3
    Our price: $1.99 List price: $2.40
  • Bolt
    • Ref No: 2588
    • Part No: 180521
    • Qty Req: 9
    Our price: $2.32 List price: $2.80
  • Ball Valve-Left
    • Ref No: 5003
    • Part No: 060846
    • Qty Req: 1
    Our price: $54.53 List price: $65.70
  • Piston/Rod Assembly
    • Ref No: 5310
    • Part No: 601536
    • Qty Req: 4
    Our price: $239.37 List price: $288.40
  • Discharge Manifold
    • Ref No: 7263
    • Part No: 050813
    • Qty Req: 1
    Our price: $145.75 List price: $175.60
  • PTO Safety Shield (Optional)
    • Ref No: 7650
    • Part No: 121902
    • Qty Req: 1
    Our price: $41.83 List price: $50.40
  • Thru-Shaft Protector (Optional)
    • Ref No: 7653
    • Part No: 121915
    • Qty Req: 1
    Our price: $17.76 List price: $21.40
  • Diaphragm Desmopan (Std.)
    • Ref No: 8113
    • Part No: 090334
    • Qty Req: 4
    Our price: $52.21 List price: $62.90
