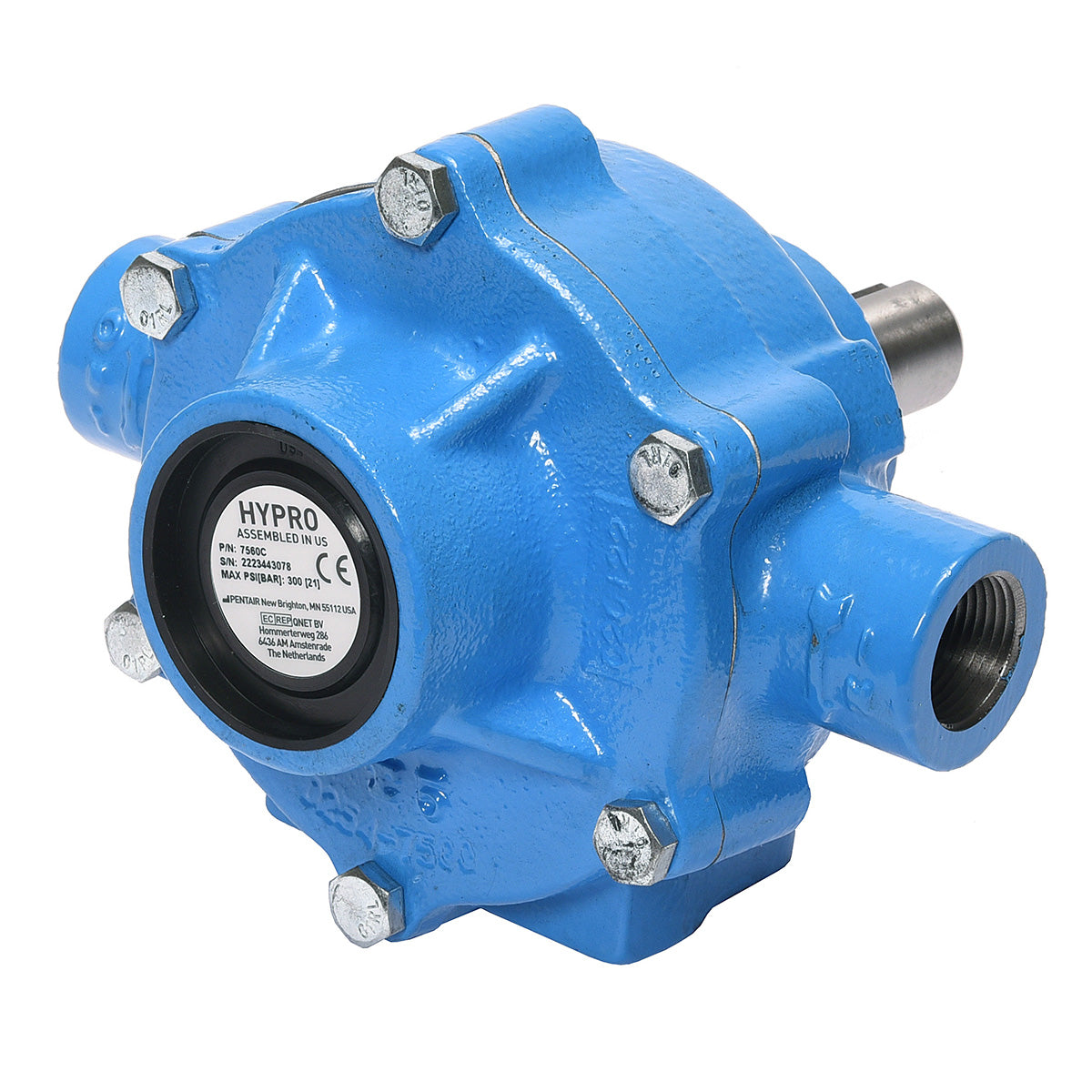

Hypro 7560C Roller Pump

Hypro 7560C Roller Pump

Brand:
Hypro
Weight:
13.0 lb
Item #
7560C
3 reviews
Skip to product information
1 of 1

Hypro 7560C Roller Pump

Hypro 7560C Roller Pump

Brand:
Hypro
Weight:
13.0 lb
Item #
7560C
3 reviews

Regular price $241.24
Sale price $241.24 Regular price List Price: $438.61

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 724 points with this purchase.

View full details

Collapsible content

Product Overview

Lightweight and low-torque, the Hypro 7560C roller pump provides easy-to-control spray coverage for small to medium size operations. With output variance between 12 and 22.5 gpms, this pump is versatile and adapts to most coverage needs. And at just 13 lbs, the pump is extremely easy to operate and install. Find the solution to getting your fertilizer, herbicides, emulsions and pesticides where they need to be with ease.

Manufacturer description

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps.

Features

  • Max flow: 22.5 gpm
  • Max pressure: 300 psi
  • Max rpm: 1000
  • Port sizes: 3/4" FNPT
  • Pump shaft rotation: CCW
  • Housing: Cast iron
  • Rotor: Cast iron
  • Roller material: Super rollers standard, Poly and Teflon® available
  • Roller quantity: 8
  • Shaft seals: Viton® standard, Buna available
  • Shaft: 15/16" solid stainless steel
  • 12 gpm/45.4 lpm at 540 rpm
  • 22.5 gpm/85.2 lpm at 1000 rpm
  • Max fluid temperature: 140°F
  • Weight: 13 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Bearing Cover
    • Ref No: 1
    • Part No: 23000020
    • Qty Req: 1
    Our price: $1.73 List price: $2.14
  • Main Bearing - Hypro Pumps
    • Ref No: 2
    • Part No: 20080001
    • Qty Req: 2
    Our price: $17.73 List price: $21.89
  • Viton Seal (Std.)
    • Ref No: 3
    • Part No: 21120003
    • Qty Req: 2
    Our price: $19.55 List price: $24.14
  • Buna-N Seal (Optional)
    • Ref No: 3
    • Part No: 21120001
    • Qty Req: 2
    Our price: $17.88 List price: $22.07
  • Bolt
    • Ref No: 4
    • Part No: 22100004
    • Qty Req: 6
    Our price: $1.06 List price: $1.31
  • Endplate Cast Iron with Seal
    • Ref No: 5
    • Part No: 02047500C
    • Qty Req: 1
    Our price: $92.69 List price: $114.43
  • O-Ring Gasket for Endplate
    • Ref No: 6
    • Part No: 17200014
    • Qty Req: 1
    Our price: $2.62 List price: $3.24
  • Super Roller (Standard)
    • Ref No: 7
    • Part No: 10050004
    • Qty Req: 8
    Our price: $4.34 List price: $5.36
  • Polypropylene Roller (Optional)
    • Ref No: 7
    • Part No: 10020004
    • Qty Req: 8
    Our price: $3.69 List price: $4.55
  • Teflon Rollers (Optional)
    • Ref No: 7
    • Part No: 10550004
    • Qty Req: 8
    Our price: $21.86 List price: $26.99
  • Rotor Assembly (Cast Iron)
    • Ref No: 8
    • Part No: 03087560C
    • Qty Req: 1
    Our price: $160.01 List price: $197.54
  • Base Kit
    • Ref No: 10
    • Part No: 34200003
    • Qty Req: 1
    Our price: $66.21 List price: $81.74
  • Body Cast Iron with Seal
    • Ref No: 11
    • Part No: 01047500C
    • Qty Req: 1
    Our price: $117.09 List price: $144.56
  • Shaft Bearing Cover
    • Ref No: 12
    • Part No: 23000022
    • Qty Req: 1
    Our price: $1.73 List price: $2.14
  • Key
    • Ref No: 13
    • Part No: 16100005
    • Qty Req: 1
    Our price: $1.91 List price: $2.36
  • Key (Stainless Steel)
    • Ref No: 13
    • Part No: 16100059
    • Qty Req: 1
    Our price: $5.29 List price: $6.53
