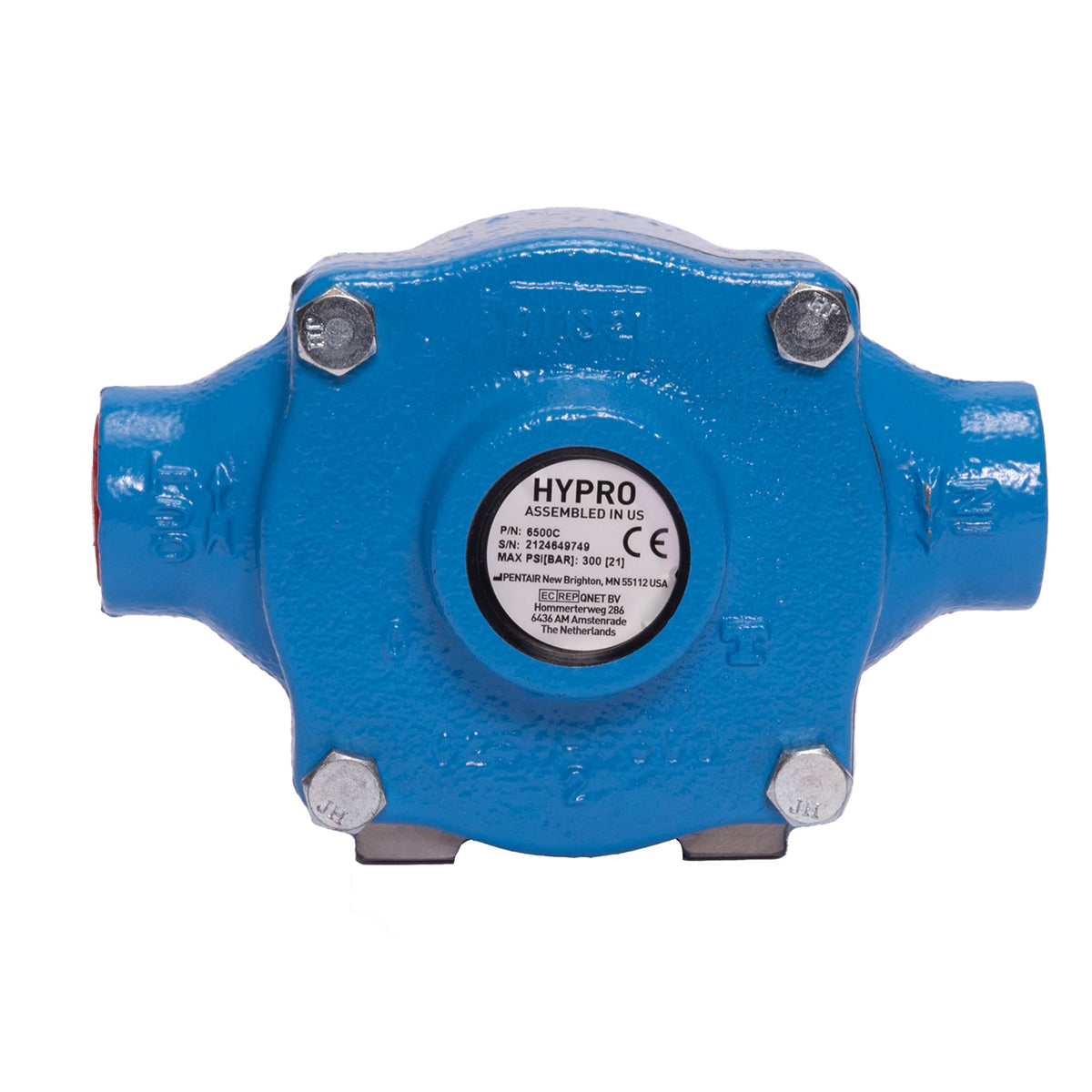

Hypro 6500C Roller Pump

Hypro 6500C Roller Pump

Brand:
Hypro
Weight:
9.0 lb
Item #
6500C
10 reviews

Regular price $184.66
Sale price $184.66 Regular price List Price: $335.75

Earn 554 points with this purchase.

View full details

Collapsible content

Product Overview

The cast iron housing and body of the Hypro 6500C Roller Pump are equipped for enduring a variety of chemicals. The six rollers contained in the pump make it ideal for commercial, residential, farming, and agricultural applications. This self-priming pump has a peak flow of 22 GPM at 1200 RPM, making it a top performing pump for nearly all of your farming and agricultural requirements.

Manufacturer description

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps.

Features

  • Max flow: 22 gpm
  • Max pressure: 300 psi
  • Max rpm: 1200
  • Port sizes: 3/4" FNPT
  • Pump shaft rotation: CCW
  • Housing: Cast iron
  • Rotor: Cast iron
  • Roller material: Super rollers standard, Poly and Teflon® available
  • Roller quantity: 6
  • Shaft seals: Viton® standard, Buna available
  • Shaft: 5/8" solid stainless steel
  • 9.7 gpm/36.7 lpm at 540 rpm
  • 18.2 gpm/68.9 lpm at 1000 rpm
  • 21.8 gpm/82.5 lpm at 1200 rpm
  • Max fluid temperature: 140°F
  • Weight: 9 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

Customer Reviews
4.8 Based on 10 Reviews
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
SH
07/13/2021
Susan H.
United States United States
  • Use Case Agriculture
  • Ease of Use Very Easy
  • Was Customer Service Helpful? Yes
Good little pump

I've used these for many years to spray weeds. They hold up well and deliver reliable pressure for hundreds of hours each year. The rollers and seals do eventually wear out but can be replaced with a little effort.

AY
06/15/2021
Alan Y.
United States United States
  • Was Customer Service Helpful? I didn't interact with Customer Service
  • Ease of Use Easy
  • Use Case Agriculture
Hypro pump

It performs as expected.

MM
03/17/2021
Monroe M.
United States United States
  • Use Case
  • Ease of Use Very Easy
  • Was Customer Service Helpful? I didn't interact with Customer Service
HYPRO 6500c Roller Pump

The ordering and receiving couldn't have been any better. So far I haven't used it but don't anticipate any problem--Monroe

JH
03/16/2021
James H.
United States United States
  • Was Customer Service Helpful? I didn't interact with Customer Service
  • Ease of Use Easy
  • Use Case Agriculture
Hypro 6500C Roller Pump

works well for me.

JS
07/01/2020
John S.
  • Use Case Other
  • Ease of Use Very Easy
  • Was Customer Service Helpful? I didn't interact with Customer Service
As advertised

The first pump that came on our PTO driven sprayer lasted for many years and countless hours of work. It was a no brainer to replace it with the same model. Looking forward to years and years of problem free work from this pump as well.
