DP-43-P (Poly) Diaphragm Pump

DP-43-P (Poly) Diaphragm Pump

Brand:
John Blue
Weight:
13.0 lb
Item #
DP43P
1 1

DP-43-P (Poly) Diaphragm Pump

DP-43-P (Poly) Diaphragm Pump

Brand:
John Blue
Weight:
13.0 lb
Item #
DP43P

$590.41
$590.41 List Price: $1,180.84

Earn 1,771 points with this purchase.

See Details

View full details

Product Overview

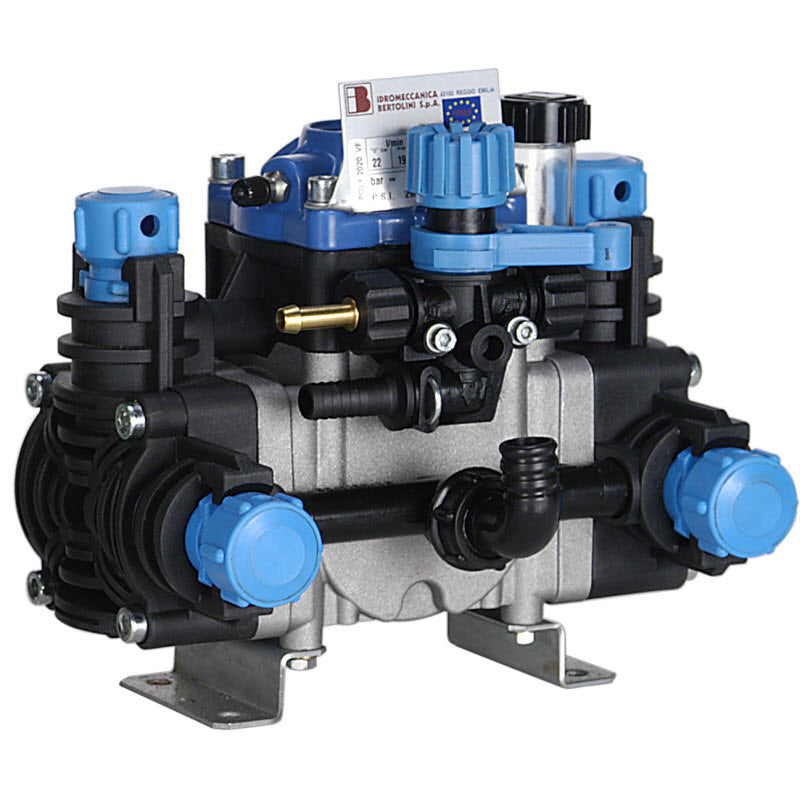

**Regulator shown in picture sold separately**

CDS-John Blue DP-43-P (Poly) Diaphragm Pump

4.3 GPM, 290 PSI

2 Diaphragm pump. Can be driven by PTO, gas engine or electric motor.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Piston Diaphragm
    • Ref No: 1
    • Part No: DP94004031
    • Qty Req: 2
    Our price: $21.91 List price: $29.21
  • Check Valve
    • Ref No: 2
    • Part No: DP94982997
    • Qty Req: 4
    Our price: $20.42 List price: $27.21
  • Pump Head
    • Ref No: 3
    • Part No: DP94030232
    • Qty Req: 2
    Our price: $98.61 List price: $131.48
  • Gasket
    • Ref No: 5
    • Part No: DP82415460
    • Qty Req: 4
    Our price: $5.84 List price: $7.80
  • Outlet Cap
    • Ref No: 6
    • Part No: DP94987897
    • Qty Req: 2
    Our price: $22.47 List price: $29.95
  • Suction Connector
    • Ref No: 8
    • Part No: DP84052100
    • Qty Req: 1
    Our price: $15.50 List price: $19.13
  • O-Ring
    • Ref No: 9
    • Part No: DP80306050
    • Qty Req: 1
    Our price: $3.17 List price: $4.23
  • Inlet Manifold
    • Ref No: 10
    • Part No: DP94986897
    • Qty Req: 1
    Our price: $100.40 List price: $133.86
  • Barb Nut
    • Ref No: 11
    • Part No: SC82004210
    • Qty Req: 1
    Our price: $11.97 List price: $15.95
  • Connecting Rod
    • Ref No: 13
    • Part No: DP94000809
    • Qty Req: 2
    Our price: $48.21 List price: $64.28
  • Piston Sleeve
    • Ref No: 14
    • Part No: DP94000701
    • Qty Req: 2
    Our price: $93.19 List price: $124.27
  • Dampner Body
    • Ref No: 15
    • Part No: DP94986797
    • Qty Req: 1
    Our price: $142.44 List price: $189.92
  • Air Valve
    • Ref No: 17
    • Part No: DP86160500
    • Qty Req: 1
    Our price: $23.76 List price: $31.68
  • Dampener Diaphragm
    • Ref No: 18
    • Part No: DP94004131
    • Qty Req: 1
    Our price: $23.61 List price: $31.47
  • Top Cover
    • Ref No: 19
    • Part No: DP94000309
    • Qty Req: 1
    Our price: $102.21 List price: $136.29
  • Washer
    • Ref No: 20
    • Part No: DP84368500
    • Qty Req: 4
    Our price: $2.79 List price: $3.73
  • Screw
    • Ref No: 21
    • Part No: DP86294500
    • Qty Req: 2
    Our price: $3.97 List price: $5.28
  • Oil Filler
    • Ref No: 24
    • Part No: DP94986697
    • Qty Req: 1
    Our price: $36.92 List price: $49.23
  • Key
    • Ref No: 28
    • Part No: DP80643600
    • Qty Req: 1
    Our price: $20.70 List price: $27.60
  • Ball Bearing
    • Ref No: 31
    • Part No: DP81272500
    • Qty Req: 1
    Our price: $71.25 List price: $87.96
  • Bearing Housing
    • Ref No: 32
    • Part No: DP94033609
    • Qty Req: 1
    Our price: $100.96 List price: $134.61
  • Oil Seal
    • Ref No: 33
    • Part No: DP80209990
    • Qty Req: 1
    Our price: $35.20 List price: $46.94
  • Snap Ring
    • Ref No: 34
    • Part No: DP80136900
    • Qty Req: 1
    Our price: $23.94 List price: $31.92
  • Screw
    • Ref No: 35
    • Part No: DP86318500
    • Qty Req: 4
    Our price: $3.86 List price: $5.15
  • Screw
    • Ref No: 41
    • Part No: DP86205900
    • Qty Req: 4
    Our price: $2.46 List price: $3.28
  • Mounting Rail
    • Ref No: 42
    • Part No: DP94009961
    • Qty Req: 2
    Our price: $64.02 List price: $85.36
  • Screw
    • Ref No: 43
    • Part No: DP86193460
    • Qty Req: 2
    Our price: $4.69 List price: $6.26
  • Outlet Connector
    • Ref No: 44
    • Part No: DP31135751
    • Qty Req: 1
    Our price: $57.71 List price: $76.95
  • O-Ring
    • Ref No: 45
    • Part No: DP80321700
    • Qty Req: 1
    Our price: $2.89 List price: $3.85
  • O-Ring
    • Ref No: 46
    • Part No: DP80308090
    • Qty Req: 1
    Our price: $6.18 List price: $8.25
  • Needle Bearing
    • Ref No: 47
    • Part No: DP81268800
    • Qty Req: 1
    Our price: $55.62 List price: $74.15
  • Spacer
    • Ref No: 48
    • Part No: DP94002632
    • Qty Req: 1
    Our price: $9.78 List price: $13.05
  • Ball Bearing
    • Ref No: 49
    • Part No: DP81252200
    • Qty Req: 1
    Our price: $35.57 List price: $47.43
  • Spacer
    • Ref No: 50
    • Part No: DP94002732
    • Qty Req: 1
    Our price: $5.45 List price: $7.26
  • Connecting Rod Ring
    • Ref No: 52
    • Part No: DP94004776
    • Qty Req: 2
    Our price: $25.91 List price: $34.54
  • Snap Ring
    • Ref No: 53
    • Part No: DP80000300
    • Qty Req: 4
    Our price: $3.28 List price: $4.37
  • Piston Pin
    • Ref No: 62
    • Part No: DP85200400
    • Qty Req: 2
    Our price: $16.48 List price: $21.97
  • Piston
    • Ref No: 63
    • Part No: DP94001708
    • Qty Req: 2
    Our price: $92.95 List price: $123.93
  • Diaphragm Washer/Bolt Kit
    • Ref No: 64
    • Part No: DP94990997
    • Qty Req: 2
    Our price: $49.30 List price: $65.72
  • Screw
    • Ref No: 65
    • Part No: DP86295100
    • Qty Req: 2
    Our price: $4.76 List price: $6.35
  • Screw
    • Ref No: 66
    • Part No: DP86290000
    • Qty Req: 8
    Our price: $3.27 List price: $4.36
  • Oil Filler Cap Assembly
    • Ref No: 68
    • Part No: DP94985597
    • Qty Req: 1
    Our price: $38.36 List price: $51.14
