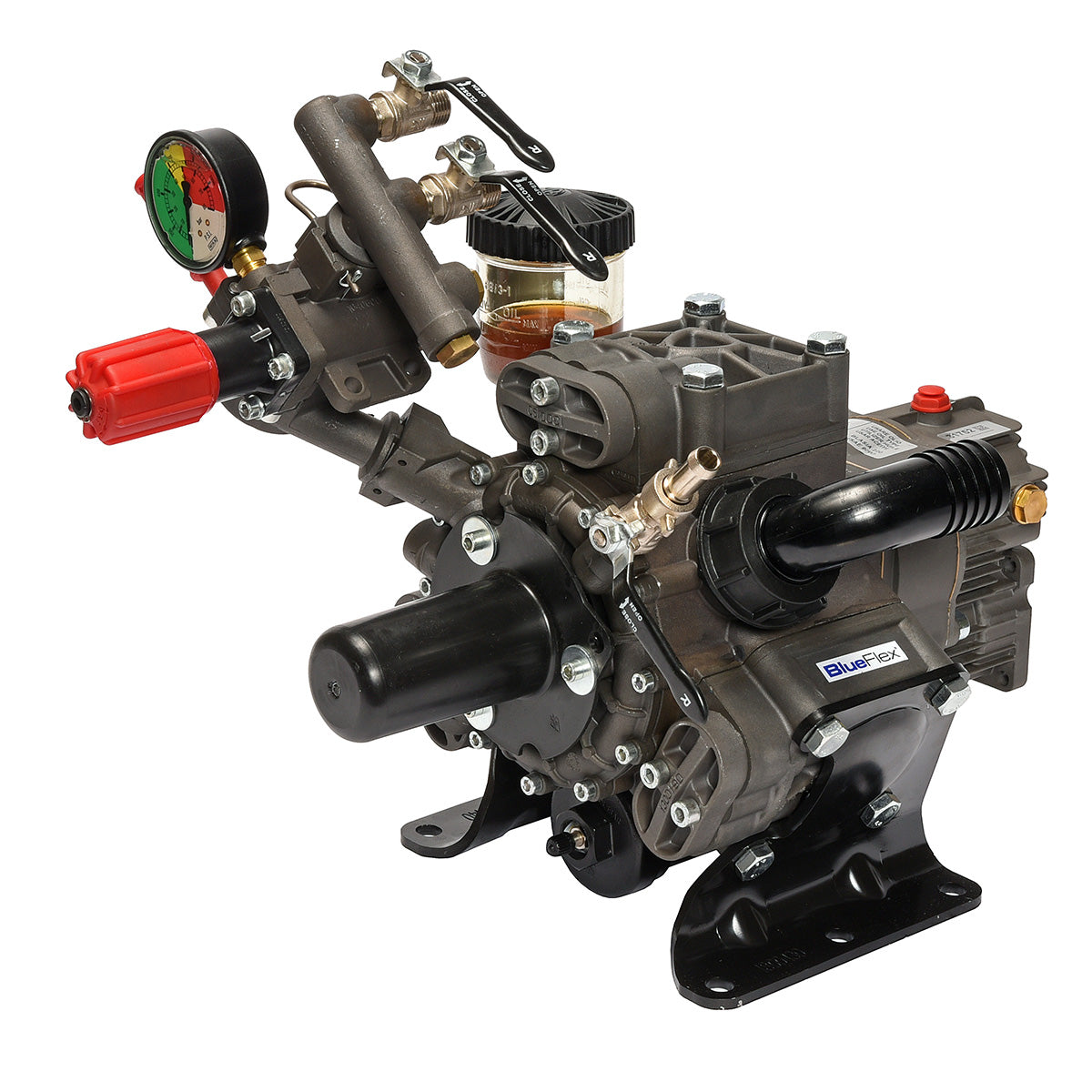

The Hypro D813GRGI Pump is a powerful, high-pressure pump ideal for spraying liquid fertilizers, pesticides, herbicides, and a variety of other fluids that are challenging to handle. The nearly wear-free operation, low-cost maintenance, and a maximum pressure of 725 psi make this pump the perfect choice for a broad range of spraying jobs. A pressure regulator and gearbox are included for extra handling convenience.

Hypro/Pentair is no longer distr

Hypro high pressure diaphragm pumps are recommended for spraying of herbicides, pesticides, liquid fertilizers and many other hard to handle fluids. Low-cost maintenance and almost wear-free operation make these pumps ideal for a wide variety of spraying jobs. Pressure and output are designed for optimum performance of medium to large-sized sprayers. Hypro high pressure diaphragm pumps are supplied with single or double-splined through-shafts. Pumps include pulsation dampeners.

Download Product Manual

• Max flow: 21.4 gpm
• Max pressure: 725 psi
• Includes 9910-VDR50 pressure regulator and 9910-KIT1642 gearbox for mounting on 9-13 hp gas engines
• Port sizes: 1-1/2" HB inlet, 3/4" NPT outlet
• Pump shaft rotation: CW and CCW
• Diaphragms: 3, semi-hydraulic, Desmopan® standard Buna available
• Housing: Anodized aluminum
• Max fluid temperature: 140°F
• Weight: 66 lbs
