Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps and related parts; however, the pumps and repair parts are still available and will not feature factory labeling.

** When you order this pump,  you will receive the most current version, AR50-SP **

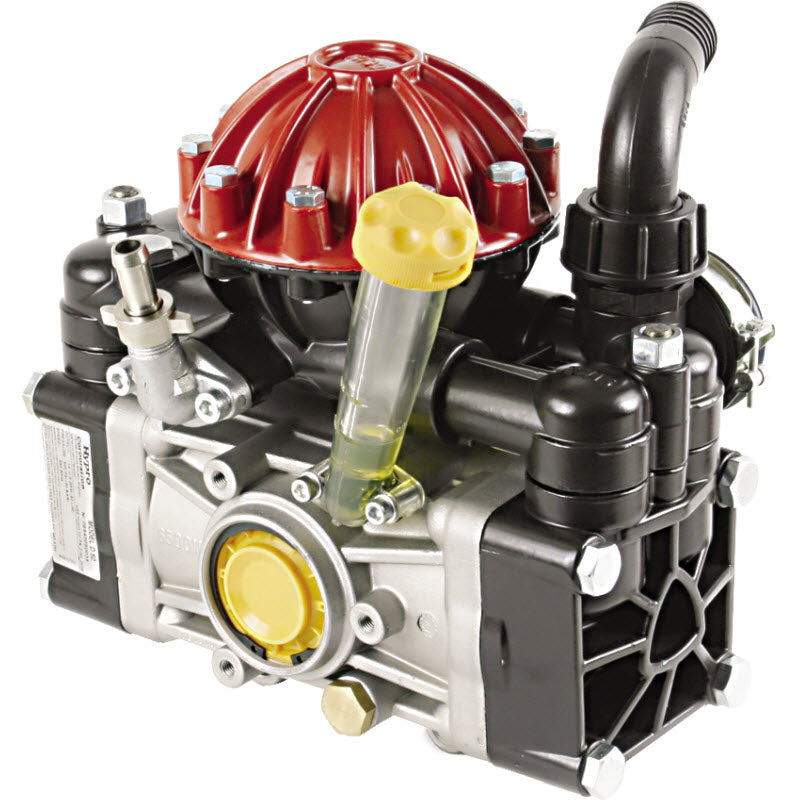

Include this superior grade, sturdy Hypro/AR D50 Pump in your sprayer system for maximum effectiveness in substance deployment. With a maximum pressure capacity of 580 PSI and a flow limit of 14.8 GPM, it's ideal for use in assemblies where medium pressure is needed. Use in sprayers delivering herbicides, liquid fertilizers, pesticides and other liquids that require extra care.

Hypro medium pressure diaphragm pumps are recommended for spraying herbicides, pesticides, liquid fertilizers, and many other hard-to-handle fluids. Low-cost maintenance and almost wear-free operation make these pumps ideal for a wide variety of spraying jobs. Pressure and output are designed for optimum performance of small to medium-sized sprayers. Hypro medium pressure diaphragm pumps can be adapted for male 1-3/8" splined shaft, female 1-3/8" splined shaft, 1" solid shaft, or gear reduction drive options. Pumps include a pulsation dampener except for Models 9910-D303, D403, and D503s. See page 2 of manual for drive options.

Download Product Manual

• Max flow: 14.8 gpm
• Max pressure: 580 psi
• Max rpm: 550
• Port sizes: 1-1/4" HB inlet, 1/2" HB outlet
• Shaft: Flanged for shaft kit or gearbox
• Pump shaft rotation: CW and CCW
• Diaphragms: 2, semi-hydraulic, BlueFlex standard Desmopan® and Buna available
• Housing: Anodized aluminum
• Recommended pressure regulator: 9910-GS40GI (GI40)
• Recommended gearbox: 9910-KIT1640 (AR1636) with 3/4" hollow shaft for mounting on 5 to 6.5 hp engines or 9910-KIT1642 (AR1639) with 1" hollow shaft for mounting on 8-9 hp engines
• Max fluid temperature: 140°F
• Weight: 35 lbs
