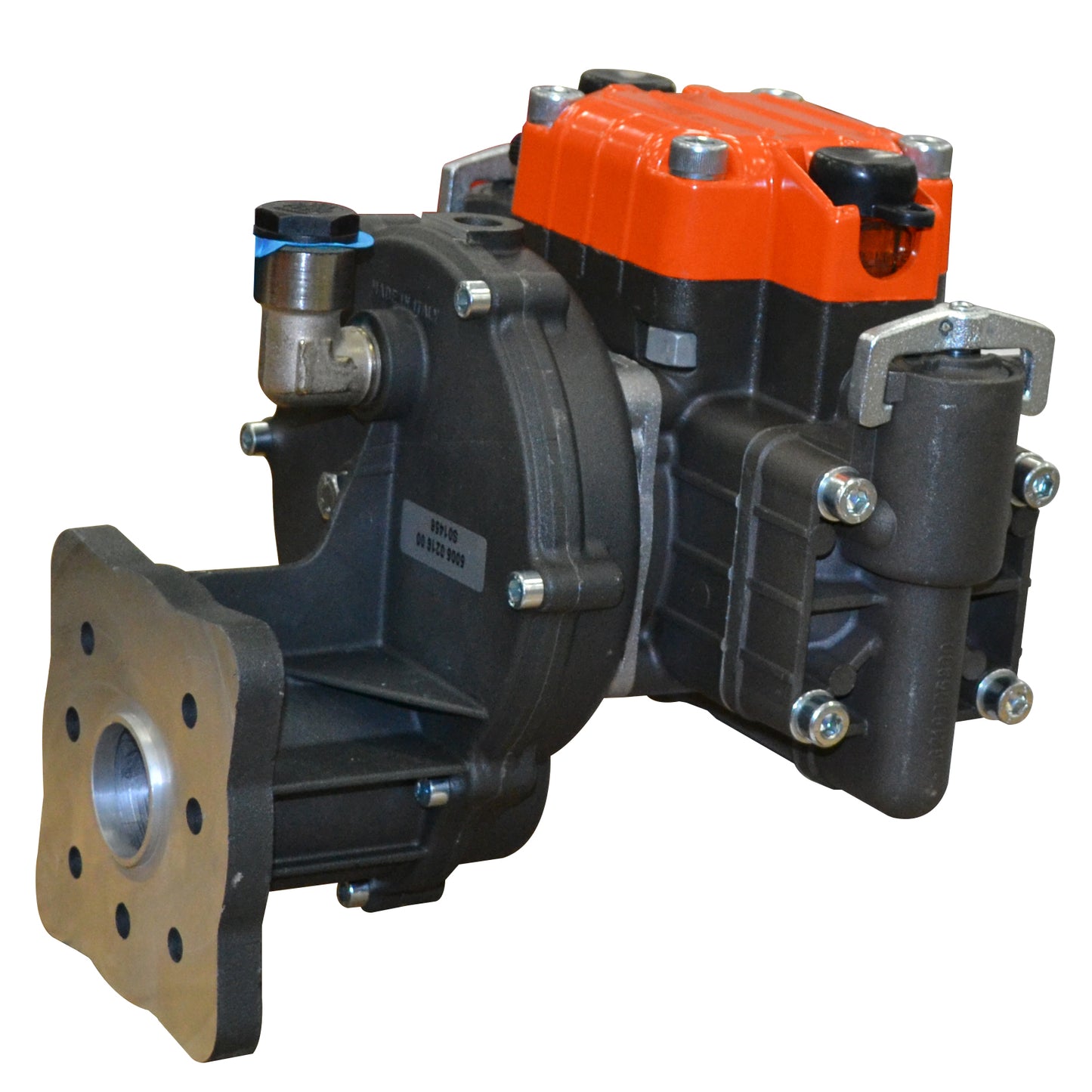

Comet MP30GR Diaphragm Pump

Comet MP30GR Diaphragm Pump

Brand:
Comet
Weight:
26.4 lb
Item #
MP30GR
1 review

$729.00
$729.00 List Price: $2,231.80

Earn 2,187 points with this purchase.

See Details

View full details

Product Overview

This Comet MP30GR Diaphragm Pump can help you make your spray assembly more efficient and effective. This twin diaphragm pump is constructed for medium pressure use, and includes a pressure regulator and gear reduction. May be used for pest control, landscaping, agriculture, and industrial applications. Can be easily mounted on a tractor or trailer.

Manufacturer description

Twin diaphragm pump with gear reduction for gas engines with 3/4" shaft. Includes pressure regulator with manual dump lever and mounting rails. Medium pressure internal manifold pumps with anodized aluminum heads for less leak points. Great for lawn care, pest control, agriculture, insulation and heavy duty industrial applications.

Resources

Download Product Manual

Features

  • Max flow: 7 gpm
  • Max pressure: 435 psi
  • Max rpm: 550
  • Includes 1204/560 control unit and 5005/216 gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp gas engines
  • Port sizes: 1" HB inlet, (2) 1/2" HB outlet, 3/4" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 2, semi-hydraulic, Buna standard Desmopan® and Viton® available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F
  • Weight: 23 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Screw
    • Ref No: 1
    • Part No: 36090095
    • Qty Req: 4
    Our price: $3.58 List price: $4.21
  • Pulsation Dampner Body MP30 (Orange)
    • Ref No: 2
    • Part No: 00030021
    • Qty Req: 1
    Our price: $88.32 List price: $103.90
  • Accumulator Diaphragm, Comet Diaphragm Pump MC25 / MP20/30
    • Ref No: 3
    • Part No: 18000033
    • Qty Req: 1
    Our price: $19.58 List price: $23.03
  • Diaphragm Support Cap
    • Ref No: 4
    • Part No: 04600011
    • Qty Req: 1
    Our price: $17.05 List price: $20.06
  • Pump Crankcase
    • Ref No: 5
    • Part No: 04030083
    • Qty Req: 1
    Our price: $419.44 List price: $493.46
  • Oil Cap
    • Ref No: 7
    • Part No: 18000081
    • Qty Req: 2
    Our price: $6.60 List price: $7.77
  • Oil Neck
    • Ref No: 8
    • Part No: 04210013
    • Qty Req: 2
    Our price: $10.00 List price: $11.76
  • Flat Gasket
    • Ref No: 9
    • Part No: 12010071
    • Qty Req: 2
    Our price: $3.37 List price: $3.96
  • Air Valve
    • Ref No: 10
    • Part No: 36100003
    • Qty Req: 1
    Our price: $16.16 List price: $19.01
  • Gasket
    • Ref No: 11
    • Part No: 12090033
    • Qty Req: 2
    Our price: $1.00 List price: $1.18
  • Roller Bearing
    • Ref No: 12
    • Part No: 04370026
    • Qty Req: 1
    Our price: $42.25 List price: $49.71
  • Connecting Rod Washer
    • Ref No: 13
    • Part No: 28130047
    • Qty Req: 1
    Our price: $11.09 List price: $13.05
  • Connecting Rod Ring
    • Ref No: 14
    • Part No: 00100008
    • Qty Req: 2
    Our price: $26.47 List price: $31.14
  • Eccentric
    • Ref No: 15
    • Part No: 08000009
    • Qty Req: 1
    Our price: $180.83 List price: $212.74
  • Roller Bearing
    • Ref No: 16
    • Part No: 04370027
    • Qty Req: 1
    Our price: $69.78 List price: $82.09
  • Washer
    • Ref No: 17
    • Part No: 28130023
    • Qty Req: 1
    Our price: $23.89 List price: $28.11
  • Ball Bearing (MP20, MP30)
    • Ref No: 18
    • Part No: 04380037
    • Qty Req: 1
    Our price: $159.77 List price: $187.97
  • Oil Seal
    • Ref No: 19
    • Part No: 00190023
    • Qty Req: 1
    Our price: $24.14 List price: $28.40
  • Key
    • Ref No: 20
    • Part No: 16020021
    • Qty Req: 1
    Our price: $57.85 List price: $69.70
  • Shaft
    • Ref No: 21
    • Part No: 00040010
    • Qty Req: 1
    Our price: $330.79 List price: $389.16
  • O-Ring
    • Ref No: 22
    • Part No: 12100069
    • Qty Req: 1
    Our price: $5.70 List price: $6.70
  • Support Cover
    • Ref No: 23
    • Part No: 04050022
    • Qty Req: 1
    Our price: $85.03 List price: $100.04
  • Bolt
    • Ref No: 24
    • Part No: 36090009
    • Qty Req: 4
    Our price: $3.12 List price: $3.67
  • O-Ring
    • Ref No: 25
    • Part No: 12100057
    • Qty Req: 2
    Our price: $0.71 List price: $0.83
  • O-Ring
    • Ref No: 26
    • Part No: 12100021
    • Qty Req: 2
    Our price: $0.90 List price: $1.06
  • Connecting Rod Assembly (Set of 2)
    • Ref No: 27
    • Part No: 02050021
    • Qty Req: 1
    Our price: $106.58 List price: $125.39
  • Piston
    • Ref No: 28
    • Part No: 24090041
    • Qty Req: 2
    Our price: $75.74 List price: $89.11
  • Piston Sleeve
    • Ref No: 29
    • Part No: 04000053
    • Qty Req: 2
    Our price: $141.58 List price: $166.56
  • Piston Diaphragm, Buna - Comet Diaphragm Pump APS41 / MC25 / MP20/30
    • Ref No: 30
    • Part No: 18000020
    • Qty Req: 0
    Our price: $15.00 List price: $17.65
  • Disc
    • Ref No: 31
    • Part No: 06020008
    • Qty Req: 2
    Our price: $9.25 List price: $10.88
  • Diaphragm Holder Screw
    • Ref No: 32
    • Part No: 36050027
    • Qty Req: 2
    Our price: $13.70 List price: $16.12
  • Gudgeon Pin
    • Ref No: 33
    • Part No: 30110013
    • Qty Req: 2
    Our price: $11.65 List price: $13.71
  • Snap Ring
    • Ref No: 34
    • Part No: 30200020
    • Qty Req: 4
    Our price: $0.43 List price: $0.50
  • Delivery Hook
    • Ref No: 35
    • Part No: 12020060
    • Qty Req: 1
    Our price: $12.55 List price: $14.76
  • Screw
    • Ref No: 36
    • Part No: 36220017
    • Qty Req: 2
    Our price: $1.64 List price: $1.93
  • U-Bolt (MP20, MP30)
    • Ref No: 37
    • Part No: 04180033
    • Qty Req: 2
    Our price: $27.28 List price: $32.09
  • Plug
    • Ref No: 38
    • Part No: 32020081
    • Qty Req: 2
    Our price: $15.76 List price: $18.54
  • O-Ring
    • Ref No: 39&44
    • Part No: 12100191
    • Qty Req: 2
    Our price: $1.00 List price: $1.18
  • Valve Cage
    • Ref No: 40
    • Part No: 12050021
    • Qty Req: 4
    Our price: $10.41 List price: $12.25
  • Valve Spring
    • Ref No: 41
    • Part No: 18020034
    • Qty Req: 4
    Our price: $1.79 List price: $2.10
  • Valve Plate
    • Ref No: 42
    • Part No: 36040007
    • Qty Req: 4
    Our price: $2.66 List price: $3.13
  • Valve Seat
    • Ref No: 43
    • Part No: 30090057
    • Qty Req: 4
    Our price: $15.65 List price: $18.41
  • Valve Assembly
    • Ref No: 45
    • Part No: 12200021
    • Qty Req: 4
    Our price: $30.80 List price: $36.24
  • Pump Manifold
    • Ref No: 46
    • Part No: 32180069
    • Qty Req: 2
    Our price: $111.01 List price: $130.60
  • Washer
    • Ref No: 47
    • Part No: 28110004
    • Qty Req: 4
    Our price: $0.48 List price: $0.56
  • Screw
    • Ref No: 48
    • Part No: 36090097
    • Qty Req: 8
    Our price: $2.50 List price: $2.94
  • Pump Mounting Bracket
    • Ref No: 49
    • Part No: 24000043
    • Qty Req: 2
    Our price: $17.31 List price: $20.36
  • Wing Nut
    • Ref No: 50
    • Part No: 12000008
    • Qty Req: 1
    Our price: $6.10 List price: $7.18
  • Hose Barb
    • Ref No: 51
    • Part No: 28000019
    • Qty Req: 1
    Our price: $11.48 List price: $13.50
  • O-Ring
    • Ref No: 52
    • Part No: 12100039
    • Qty Req: 1
    Our price: $0.81 List price: $0.95
  • Elbow
    • Ref No: 53
    • Part No: 28030027
    • Qty Req: 1
    Our price: $18.06 List price: $21.25
